Display died


Legodude522

Active Member
Joined
Sep 29, 2005
Messages
90
Location
New Braunfels
Website
www.wikigrave.com
The display on my 1ghz Pandora appears to have died. Tried all of the usual stuff like power cycling and removing battery. From how the LEDs are acting, it looks like the Pandora is booting but the LCD is just completely dead, no display and no backlight. Any ideas? Is this simply a cable that needs to be reseated? I wasn't exactly gentle with it since I use it for work on smoke stacks but there has been no direct impacts to it.


levi

Still fresh, damnit!
Joined
Oct 6, 2008
Messages
15,206
Location
Somewhere off the coast of the EU
Check it's not simply the backlight that's gone; shine a torch onto it and see if you can see anything. If it is just the backlight it could conceivably be the cable at fault, but more likely the units shaken a coil loose. If it's completely dead, seems like a cable's become unplugged. The easiest side to get to is the bottom layer if you remove the screws from the base and open it that way, although it's possible it's become unclipped from the other end.


Legodude522

Active Member
Joined
Sep 29, 2005
Messages
90
Location
New Braunfels
Website
www.wikigrave.com

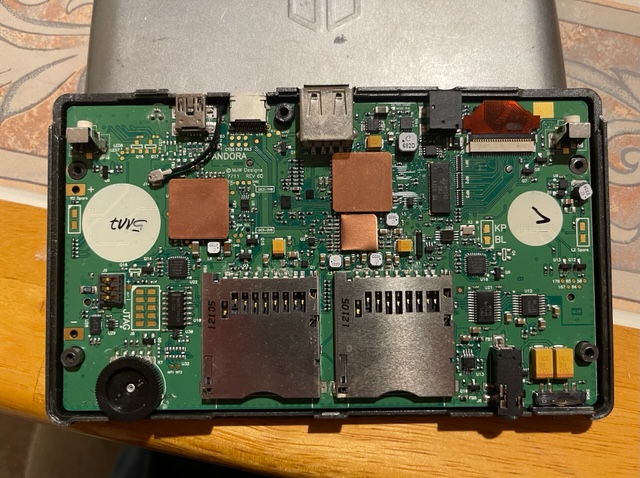

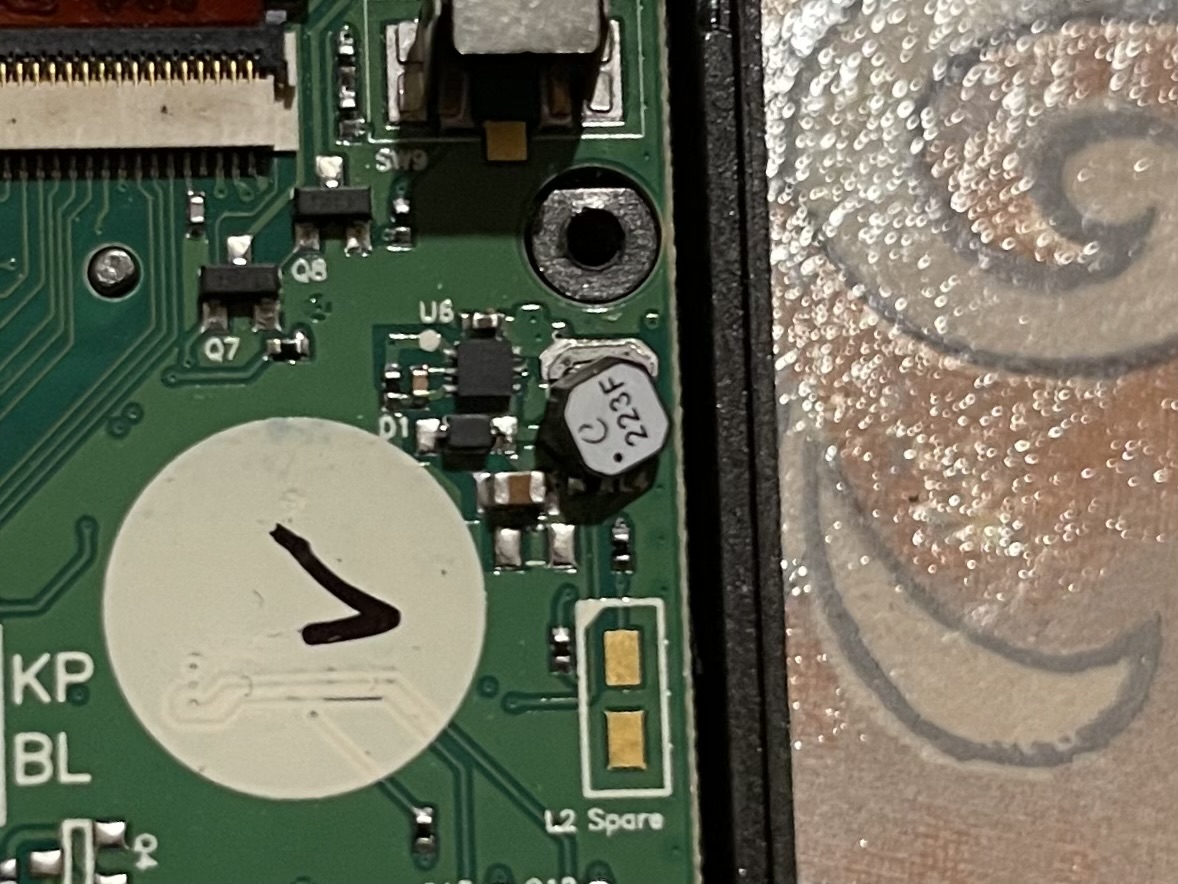

Attachments

  • IMG_0170.jpg
    300.4 KB · Views: 36
  • IMG_0169.jpg
    184.1 KB · Views: 34
  • Like
Reactions: rSl

levi

Still fresh, damnit!
Joined
Oct 6, 2008
Messages
15,206
Location
Somewhere off the coast of the EU
It's probably the same part, but I don't see the need to buy one because the one you've already got is very unlikely to have broken. Fitting it again is a bit tricky becase it's a surface mount part so the contacts are on the bottom of it. If you already have a hot air rework station then it might be worth having a go, but otherwise I'd suggest paying for ED to fix it for you and shipping it back there.


Legodude522

Active Member
Joined
Sep 29, 2005
Messages
90
Location
New Braunfels
Website
www.wikigrave.com
It's probably the same part, but I don't see the need to buy one because the one you've already got is very unlikely to have broken. Fitting it again is a bit tricky becase it's a surface mount part so the contacts are on the bottom of it. If you already have a hot air rework station then it might be worth having a go, but otherwise I'd suggest paying for ED to fix it for you and shipping it back there.
I wonder what turnaround time is these days. I'm considering buying a hot air rework station.


Letalis Sonus

Advanced Member
Joined
Mar 5, 2009
Messages
1,495
because the one you've already got is very unlikely to have broken.
I guess that depends on whether the visible shape on the solder pad is the imprint of the coil - or the coil's own pad that broke off. I'd say the latter looks more plausible.


TeDaDeS

Hardcore Member
Joined
Jan 15, 2004
Messages
1,376
Location
The Netherlands
Website
Visit site
I wonder what turnaround time is these days. I'm considering buying a hot air rework station.
You could always find someone near that is handy with soldering these kind of components. If the coil isn't broken it probably still works. But the coil itself is cheap to buy, if you repair it I would place a new one anyway.

Shipping it to ED, waiting for the fix and shipping it back will probably take a while. Especially if you live outside of Europe.


levi

Still fresh, damnit!
Joined
Oct 6, 2008
Messages
15,206
Location
Somewhere off the coast of the EU
I guess that depends on whether the visible shape on the solder pad is the imprint of the coil - or the coil's own pad that broke off. I'd say the latter looks more plausible.
Hmm, that is possible, although I've more commonly seen the pads on the motherboard lifted with the component with learner solderers. Never seen the component come apart and leave parts of it's guts on the motherboard. But either way round complicates the repair I guess.


Git1

Member
Joined
Dec 23, 2020
Messages
40
This is why I love the Pandora/Pyra project. Could you imagine asking A@#$e about such a problem? Well done guys.

  • Love
Reactions: rSl

TrashyMG

Sarcasm Dispenser
Staff member
Joined
Jan 18, 2010
Messages
11,134
I think in these cases the solder joint was the weak spot, likely size of the part didn't allow for proper heating of the pads and created a weak bond.


TeDaDeS

Hardcore Member
Joined
Jan 15, 2004
Messages
1,376
Location
The Netherlands
Website
Visit site

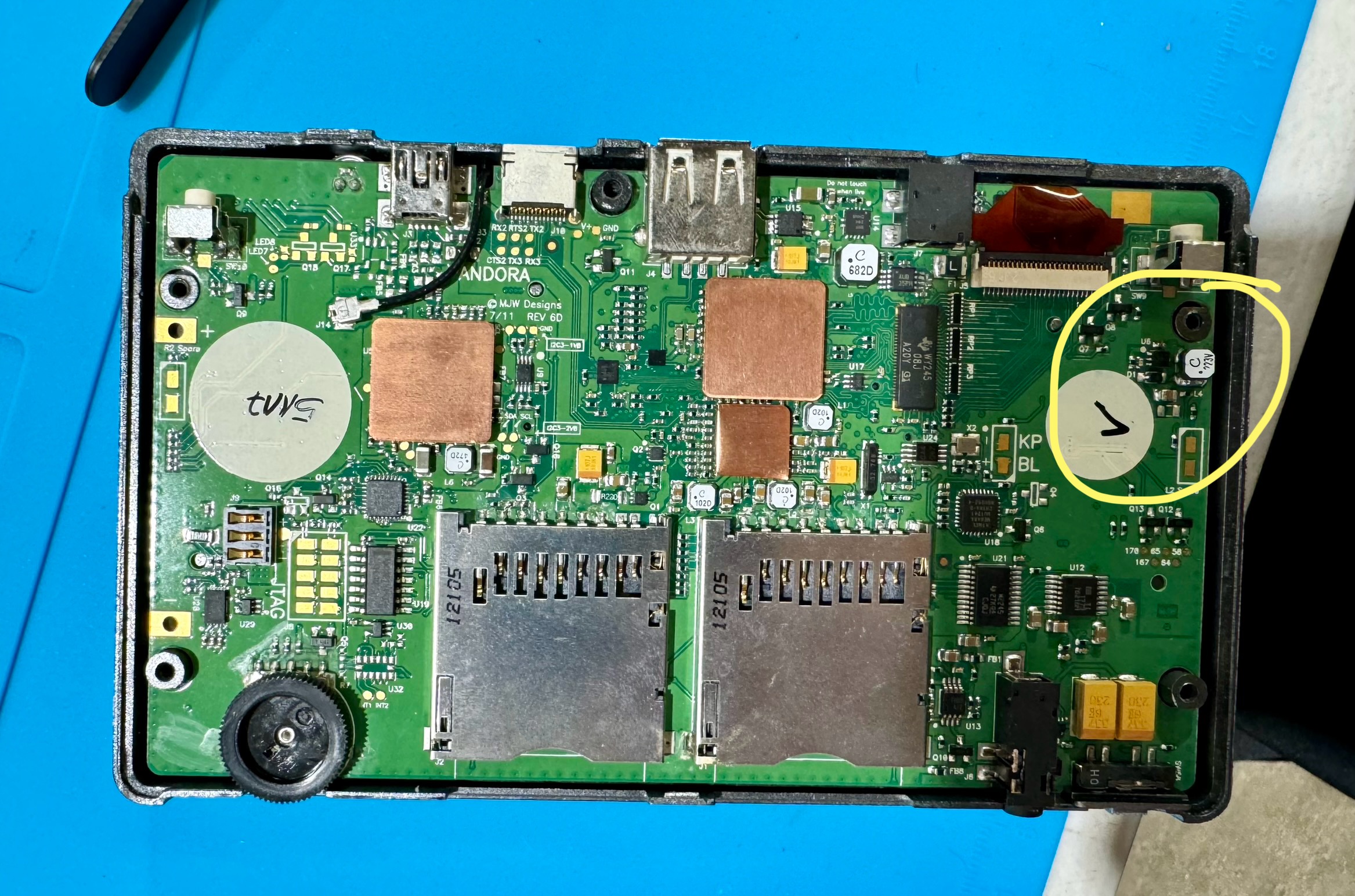

Thanks all. Upon close inspection, the LCD was working but the back light was off. I opened up the Pandora and the first thing I saw was the coil hanging off.

Would this be an appropriate replacement? https://www.mouser.com/ProductDetail/Coilcraft/LPS4018-223MRC?qs=QQJxVsr8EGZ1iTyTHMP0jg==
Yes, LPS4018-223MRC is the same part as LPS4018-223ML.
The RC at the end (R, which was L) means they switch to a new 'termination' (Matte tin over nickel over silver) and the C means which type of reel is used (which is only interesting when doing mass production).

More info: https://www.coilcraft.com/en-us/pro...ductors/ferrite-drum/lps/lps4018/lps4018-223/

Last edited:

Legodude522

Active Member
Joined
Sep 29, 2005
Messages
90
Location
New Braunfels
Website
www.wikigrave.com

TeDaDeS

Hardcore Member
Joined
Jan 15, 2004
Messages
1,376
Location
The Netherlands
Website
Visit site
If you just reseat the original coil you might get away using nothing additional.

with a new coil you probably also want:
Flux, makes your solder flow better.
Solder paste, which works well with hot air, it also makes the coil stick to the board. Don’t use too much, else solder balls will fly over the board (usually easy to remove though).
Isopropyl alcohol for removing flux after you are done.
