Pandora Needs To Go X86 (eventually)


Phawx

Professional Derailer
Joined
Oct 1, 2008
Messages
1,345
That team of people would be called Microsoft. And the only type of OS we *might* get from Microsoft would be Windows CE.

Also, just porting Windows to ARM wouldn't help X86 applications run.

Last edited by a moderator:

mali

-
Joined
Sep 30, 2008
Messages
6,543
Age
46
Location
EU
Website
Visit site
Beware, just look at the latest 6.5 WinMobile build :lol:
Microsoft is used to have plenty of recources on the target as it seems, efficiency doesn't seem to be a design goal(see long history of sluggish crap).

Last edited by a moderator:

WizardStan

Mega GP Mania
Joined
May 24, 2008
Messages
16,733
Raz said:
Why can't someone just work on an x86 port (putting all legalities aside)..

Forgive me if I sound n00bish, but a person could technically install x86 from an SD card through service mode.
First: x86 is not software, it is hardware. In order to run an x86 game you need to have the x86 hardware, or emulate it, the same way that we can emulate a SNES or Gameboy. There are x86 emulators, but like all emulators, they take a massive hit in performance. This is because the emulator needs to read the next x86 instruction, translate that to an ARM instruction, and then execute that instruction. Assuming all instructions are mapped perfectly from one to the other, that means at least 3 x86 instructions per ARM instruction. At the absolute best, that puts our 600 Mhz arm operating at around 200 Mhz x86. This best case scenario is impossible. Not all instructions map perfectly.
The reality is that it's probably closer to 10:1 instead of 3:1. The best way to get an x86 game to run on an ARM processor is to get the source and then recompile it for the ARM.

Second: even if Windows itself is somehow magically ported to ARM, and can run natively and flawlessly, all that gives you is the operating system. The programs that run on Windows are still all x86 so will not run on an ARM processor.

Last edited by a moderator:

Exophase

Nothing good will ever come of Exophase.
Joined
Sep 21, 2006
Messages
10,308
Age
38
Location
Cleveland OH
'WizardStan' said:
The reality is that it's probably closer to 10:1 instead of 3:1. The best way to get an x86 game to run on an ARM processor is to get the source and then recompile it for the ARM.
An x86 interpreter, which is what you're describing, will not run in an average of 10:1 instructions on the very best of implementations. There's a ton more overhead than what you're describing, because you have to (for pure 386 emulation, nothing high level assumed, no MMU assistance on Linux):

- Fetch the first byte of the instruction, that's an ldr
- Increment the PC and check to see if it crossed a page boundary to see if it has to be reloaded from the page table/caused a page fault. When running on a 32bit OS it's entirely possible that the instruction stream won't be contiguous in physical memory. Of course, if you're emulating at a higher level like Windows user space then such an approach isn't necessary, but it'd be kind of strange to be using an interpreter with this level. Anyway, this is at least two instructions (inc, bcs)
- Switch to a handler for the byte, that's two instructions (ldr, bx)
- If this is a one byte instruction then you can finish what you're doing, but then you have to decrement a cycle counter and branch out if it's underflowed - you can merge the fetch of the next instruction and fall through for this, so it's one instruction (subs).
- Let's say the instruction is one byte - then you can start executing it now. You'll have to emulate flags though, which will be at least one more instruction. So for the simplest 1 byte instructions you might pull it off in 8 ARM instructions. But most instructions are not one byte or are more complicated in other ways - let's look at a still very simple instruction like add eax, ebx:
- Have to get another byte, the mod/rm byte. That's another three instructions.
- One low-instruction way to handle this is to have an 8bit jump table that handles every case for this byte. Unfortunately, this will have damaging effects on icache and wastes some dcache as well, but it might be your best bet - you might end up collapsing less common combinations to the same function and decoding those. Let's say you do have a function for register/register on eax, ebx. Then there is an ldr and a blx to get to the handler (this is assuming you actually have the base in a register, you'll be quickly running out of registers here), the function handler does two movs or two ldrs (will take same amount of cycles, starting to look like it's not worth it to try to keep any x86 registers in ARM registers), then a bx lr, so that's five instructions to load the operands.
- Now the add instruction: an adds for the add, then you have to compute flags - since x86 tends to stomp on all the flags a lot when it writes them, the best way to do this might be to use the mrc instruction on ARM to somewhere. Unfortunately, the carry flag is inverted on x86 from ARM, so you need another instruction to change it back. That's three instructions to perform the add.

So we have 17 instructions for add eax, ebx, and that's fairly best case-scenario.

The cycles ratio (depending on which x86 you're talking about) will be even worse, considering that you must take at least one indirect branch per instruction in an interpreter. An indirect branch on Cortex-A8 that isn't a function return (pulling off the stack) seems to be an automatic branch mispredict, which is 13 cycles all by itself. I would need to verify this though. The penalty is actually a lot worse than it'd be on an ARM9. Both icache and dcache misses will crop up much more than what you'd expect for an x86 with the same amount of icache/dcache .

A dynamic recompiler, on the other hand, could perform much much better, depending on what kind of code it's dealing with and how advanced it is.

Last edited by a moderator:

WizardStan

Mega GP Mania
Joined
May 24, 2008
Messages
16,733
'Exophase' said:
An x86 interpreter, which is what you're describing, will not run in an average of 10:1 instructions on the very best of implementations. There's a ton more overhead than what you're describing, because you have to (for pure 386 emulation, nothing high level assumed, no MMU assistance on Linux):

In my defense, I was trying to keep things as simple as possible to explain to someone who didn't know the difference between an x86 processor and the Windows OS that runs on it.
Thanks for the information, though; I wasn't entirely aware of the specific details myself, so I just grabbed the generic 10:1 number often cited for most other emulators.

Last edited by a moderator:

Exophase

Nothing good will ever come of Exophase.
Joined
Sep 21, 2006
Messages
10,308
Age
38
Location
Cleveland OH
'WizardStan' said:
'Exophase' said:
An x86 interpreter, which is what you're describing, will not run in an average of 10:1 instructions on the very best of implementations. There's a ton more overhead than what you're describing, because you have to (for pure 386 emulation, nothing high level assumed, no MMU assistance on Linux):

In my defense, I was trying to keep things as simple as possible to explain to someone who didn't know the difference between an x86 processor and the Windows OS that runs on it.
Thanks for the information, though; I wasn't entirely aware of the specific details myself, so I just grabbed the generic 10:1 number often cited for most other emulators.
Magic numbers are thrown around a lot for emulation but unfortunately things never really work out that way. It's good to step back and try to get a look at the work involved for the particular emulation you're interested in.

Last edited by a moderator:

closetwam

Member
Joined
Mar 27, 2008
Messages
105
Location
the north
Website
Visit site
OP can buy an Atom based gaming machine as soon as someone makes one. OP need no longer try to convince everyone here that Pandora should be that device. I think this thread does a fine job of showing the community's support for the direction that the Pandora is headed in right now. For the people, by the people!

Last edited by a moderator:

palmertech

Member
Joined
Mar 3, 2008
Messages
432

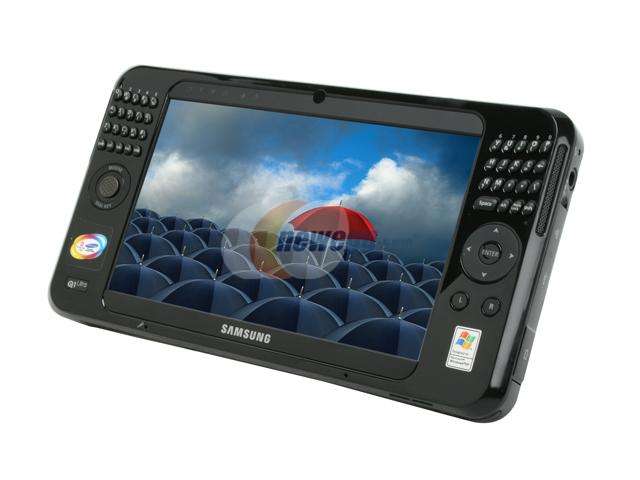

http://www.newegg.com/Product/Product.aspx...N82E16834131028



I think that is what you want. Problem solved!


Klaus

Member
Joined
Nov 8, 2008
Messages
643
'palmertech' said:
...Samsung stuff removed in quote...

I think that is what you want. Problem solved!
Guess again. :p
CODE

http://digitalliving.cnet.co.uk/specials/0,39030785,49282099-1,00.htm
