I started playing with conky today and came up with a simple setup like this, I hope other will paste their config files, and discuss inprovements so we can make nice desktops.





The Config File:


alignment top_left


background no


border_width 1


cpu_avg_samples 2


default_color white


default_outline_color white


default_shade_color white


draw_borders no


draw_graph_borders yes


draw_outline no


draw_shades no


use_xft yes


xftfont DejaVu Sans Mono:size=12


gap_x 0


gap_y 5


minimum_size 60 60


net_avg_samples 2


no_buffers yes


out_to_console no


out_to_stderr no


extra_newline no


own_window no


double_buffer yes


own_window_class Conky


own_window_type normal


stippled_borders 0


update_interval 4.0


uppercase no


use_spacer none


show_graph_scale no


show_graph_range no


TEXT


${offset 590}${font DejaVu Sans Mono:size=22,bold} ${time %H:%M} ${font DejaVu Sans Mono:size=12}


${offset 590}HARDWARE:$hr


${offset 590}${color grey}CLOCKSPEED:$color $freq MHz


${offset 590}${color grey}CPU:$color $cpu% ${cpubar 6}


${offset 590}${cpugraph 20, 200}


${offset 590}${color grey}RAM:$color $memperc% ${membar 6}


${offset 590}FILESYSTEM:$hr


${offset 590}${color grey}ROOT:$color ${fs_used_perc /}% ${fs_bar 6 /}


${offset 590}${color grey}SD-1:$color ${fs_used_perc /media/mmcblk0p1}% ${execbar df -h | grep "/media/mmcblk0p1" | awk '{ printf "%s", $5 }' }


${offset 590}${color grey}SD-2:$color ${fs_used_perc /media/mmcblk1p1}% ${execbar df -h | grep "/media/mmcblk1p1" | awk '{ printf "%s", $5 }' }


${offset 590}${color grey}SWAP:$color ${swapperc}% ${swapbar 6}


${offset 590}NETWORK:$hr


${offset 590}${color grey}UP:$color ${upspeed wlan0}


${offset 590}${upspeedgraph wlan0 20, 200}


${offset 590}${color grey}DOWN:$color ${downspeed wlan0}


${offset 590}${downspeedgraph wlan0 20, 200}

Nice, I'll post mine up later, it's a butchered one from a pre made setup, and it works with my current background perfectly too.

I like the look of this, it looks like it's highly customisable then too. I'd like to see more styles.


Wallpaper is neon

I've got the battery bar to work, we could do with a page with pandora specific cocky items, such as the battery bar or the clock speed display (I had a lot of trouble with my config as I just butchered other people's attempts, I tried to add a time remaining display but couldn't).


I'll upload my (very messy) config in a minute as my pandora is out of battery right now.

alignment top_right


background no


border_width 1


cpu_avg_samples 2


default_color cornflowerblue


#default_graph_size 0 5#h


double_buffer yes


draw_borders no


draw_graph_borders yes


draw_outline no


draw_shades no


gap_x 25


gap_y 15


maximum_width 360


minimum_size 360 10


net_avg_samples 2


no_buffers yes


out_to_console no


own_window_colour black


own_window_hints undecorated,below,sticky,skip_taskbar,skip_pager


own_window_transparent yes


own_window_type normal


own_window yes


stippled_borders 2


update_interval 2


use_spacer right


use_xft yes


xftfont Bitstream Vera Sans Mono:size=10


TEXT


${voffset 10}


${color #0000FF}$nodename ${alignc}$sysname $kernel ${alignr}${time %H:%M:%S}


${color #0000FF}Uptime:$color $uptime ${color #0000FF}


${color #0000FF}CPU:$color ${cpu}% ${color #0000FF}${cpubar 5,288}


${color #0000FF}${cpugraph 0 32,360 0000FF 0000FF}


#${execgraph ~/conkypandoracapacity.sh}


#${execgraph ~/conkypandoravoltage.sh}


${color #0000FF}RAM Usage:$color $mem${color #0000FF}/${color}$memmax - $memperc% ${color #0000FF}$membar


#is swapping even possible? ${color #0000FF}Swap Usage:$color $swap${color #0000FF}/${color}$swapmax - $swapperc% ${color #0000FF}${swapbar}


#${color #0000FF}${downspeedgraph eth0 32,155 0000FF 0000FF} $alignr${color #0000FF}${upspeedgraph eth0 32,155 0000FF 0000FF}


#${color #0000FF}Net Down:$color ${downspeed eth0} k/s ${color #0000FF}Net Up:$color ${upspeed eth0} k/s


${color #0000FF}File systems:


${color #0000FF}PANDORA $color${fs_used /}/${fs_size /}${alignr}${color #0000FF}${fs_bar 5,120 /}


${color #0000FF}SD_MAIN $color${fs_used /media/SD_MAIN}/${fs_size /media/SD_MAIN}${alignr}${color #0000FF}${fs_bar 5,120 /media/SD_MAIN}


${color #0000FF}SD_GAMES $color${fs_used /media/SD_GAMES}/${fs_size /media/SD_GAMES}${alignr}${color #0000FF}${fs_bar 5,120 /media/SD_GAMES}


#ramdisk? ${color #0000FF}ram $color${fs_used /media/ram}/${fs_size /media/ram}${alignr}${color #0000FF}${fs_bar 5,120 /media/ram}


${color #0000FF}Battery


${execbar cat /sys/class/power_supply/bq27500-0/capacity}


$color${execi 15 ~/conkypandorabattery.sh}


---------------------------------------------------

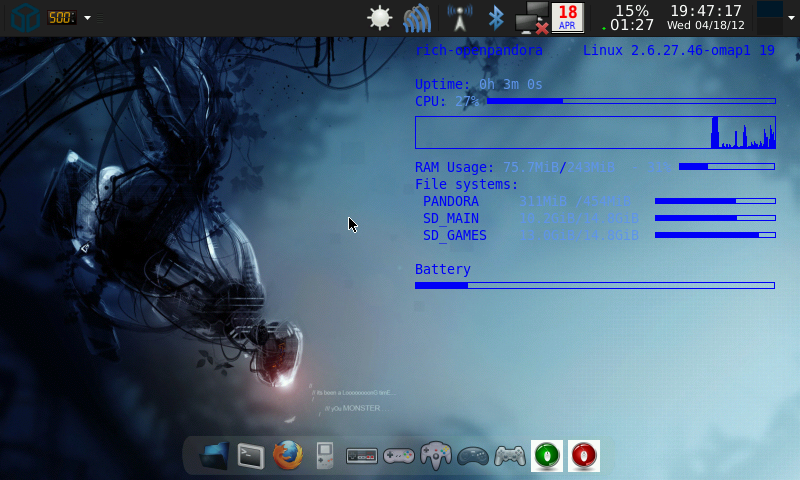

sorry its so messy. Also, my clock seems to be out by a lot after a short amount of time hence the odd time in the pic.


Last edited by a moderator:
To be honest I don't know what it contains, I just took apart and planted in things to a config that already had it.


And thank you :) I need to get round to finding a red and green mouse icon that doesn't have the white background, I have conky, WBar and ABMouse on autostart but some things like The snes emulator don't play ball with ABMouse so I have enable and disable on the bar.


I use an old MacBook so the setup looks pretty close to OSX

A while ago I tested some available Configs but even if the look was changed, I never got the graphs working or displaying CPU Speed or Network. Does Conky require admin rights or what's the trick?

A while ago I tested some available Configs but even if the look was changed, I never got the graphs working or displaying CPU Speed or Network. Does Conky require admin rights or what's the trick?

you need to change to what your wlan fefers to, mine is wlan0, $cpu and $cpubar sould work. to wiev sd cards you need to change the path and name of your cards, ex. ${execbar df -h | grep "/media/YOURCARDNAME" | awk '{ printf "%s", $5 }' }


The gap_x, gap_y desides where conky is displayed on screen. i prefer the ${offset } command. i find it easyer


Note, what you find working for laptops and other computers may warry from pandora.


Some info that may help:


- http://conky.sourceforge.net/variables.html


- http://conky.sourceforge.net/config_settings.html

Last edited by a moderator:
I didn't find those links helped that much for me, which is why I suggested something for pandora specific conky commands.


I butchered mine together I really should neaten it up.

I didn't find those links helped that much for me, which is why I suggested something for pandora specific conky commands.

There are no 'Pandora specific' commands for conky. There are only conky commands that will work on any computer with conky installed.


There is a *huge* thread here all about conky complete with screenshots and different setups you can try:


http://ubuntuforums.org/showthread.php?t=281865


I know it's for Ubuntu, but that doesn't really matter, just decide how big you want your conky window, decide where on the screeen you want to place it and then fiddle around with the variables.


Here is a link to how my desktop looked a while ago, I can post the config files if anyone is interested.


http://ubuntuforums.org/showpost.php?p=6398899&postcount=5064


A couple of random links to show off other peoples desktops too.


http://www.omgubuntu.co.uk/tag/conky/


http://www.linuxhaxor.net/8-beautiful-conky-desktop-monitor-setup/


I did start to write a wiki page for conky, now that people are getting Pandoras and I might even get mine soon maybe I should get back to it.

the file found in sys/class/net/wlan0/wireless/link seems to react to signal strenght of the wlan network


So.. i opened the path in terminal and came up with a code like this:


${execbar cat /sys/devices/platform/omap/omap_hsmmc.2/mmc_host/mmc2/mmc2:0001/mmc2:0001:1/net/wlan0/wireless/link}


It works, it reacts on signal strenght, but however i dont seem to get 100 % even tho im standing next to rooter.


It seems like for me it dumps 66, 67 in the link file at maximum.

Last edited by a moderator:
