EvilDragon [Englischer Beitrag] said:
This will just be a pretty quick blog post without much explanation or anything else (more will follow soon :))

Finally, we received the missing datasheet for the driver IC as well as some other needed documentation, and shortly after, Nikolaus managed to do the following:

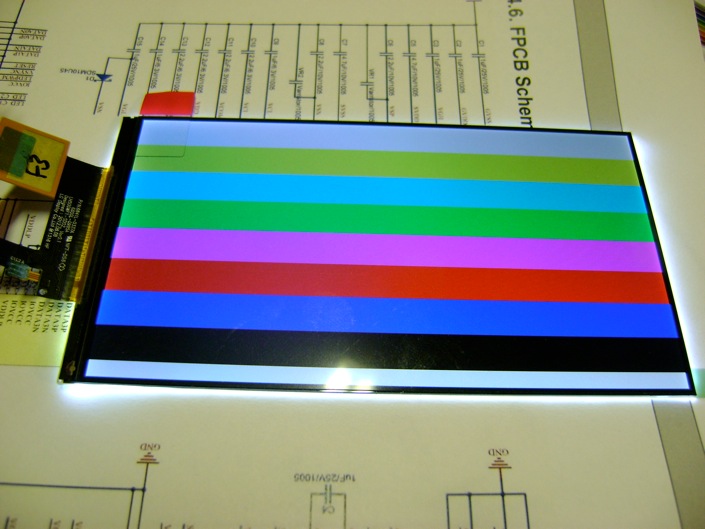

Now, before you are getting excited:
This is NOT a picture from the Pyra devboard.
It is a built-in test pattern from the driver IC.

However, it means that the LCD is now properly initialized - now we're talking ;)

Shortly after however, Nikolaus managed to do this:

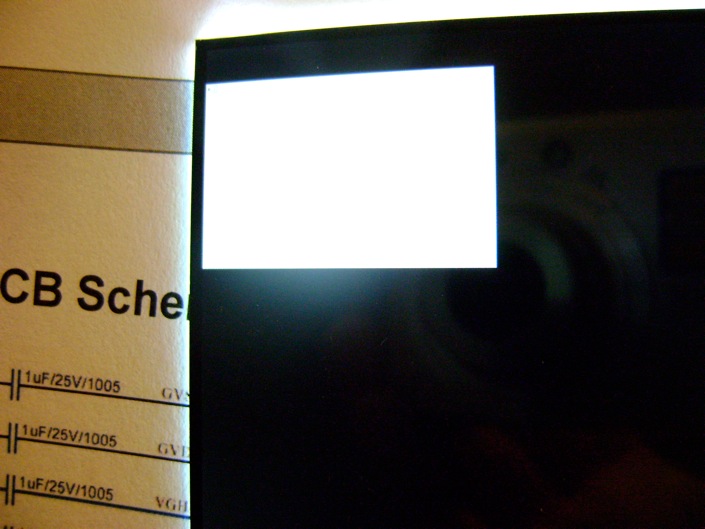

This doesn't look spectacular, I know. It looks like a white box on a black screen.
However, it isn't.

It's actually an X server with a white xterm window.
If you look careful, you can see a tiny symbol in the top-left corner of the LCD - that's the shell waiting for input.
It's very very small (well, FullHD on 5"...) and the camera is a bit overexposed.

But yes, that does mean: We've got the LCD running on the devboard.

Now you can get excited.

I don't have the hardware PCB at home right now to connect the display myself yet, so I can't do any more pictures.
However, as soon as I get an updated version from Nikolaus, I'll do pictures and videos.

Now it's fullspeed ahead mixing the components further together :)


Übersetzung said:
Das wird nur ein schneller Blogpost ohne Erklärungen oder sonstiges (bald gibt es mehr :))

Endlich haben wir das fehlende Datenblatt für den IC Treiber und andere benötigte Dokumentationen bekommen, kurz danach hat es Nikolaus follgendes geschafft:



Bevor ihr euch zu sehr freut, das ist KEIN Bild vom Pyra Devboard.
Es ist ein eingebauter Test im IC Treiber.

Wie auch immer, der LCD ist nich richtig Initialisiert - jetzt können wir reden ;)

Kurz danach hat Nikolaus dies geschafft:



Es sieht nicht sehr spektakulär aus.
Eine weise Box auf schwarzem Hintergrund.
Ist es aber nicht.

Es ist ein X-Server mit einem weisen xterm Fenster.
Wenn ihr ganz genau hinseht, erkennt man ein kleines Symbol im oberen linken Eck des LCDs - das ist die Shell die auf eine Eingabe wartet.
Es ist sehr, sehr klein (FullHD auf 5"...) und die Kamera ist etwas überbelichtet.

Genau, das heißt wir haben das LCD funktionstüchtig am Devboard.

Jetzt könnt ich aufgeregt werden.

Ich habe das PCB momentan nicht Zuhause, um es mit dem Display selbst zu verbinden, deshalb kann ich nicht mehr Bilder machen.
Sobald ich ein geupdatete Version von Nikolaus bekomme, werde ich Bilder und Videos machen.

Jetzt geht es mit voller Geschwindigkeit vorraus und die Componenten weiter zusammenmischen :).
