Usb Devices


aesir911

aesir triumphs
Joined
Aug 8, 2009
Messages
510
Age
30
Location
U.S.A.
So have any of the lucky 600 tried using usb devices with their pandora yet? do hard drives, gaming controllers, and keyboards work with it? (looking for videos...)


PhillipJ

Member
Joined
Nov 4, 2008
Messages
144
There's a USB compatibility list in the wiki. Hardware requirement is USB 2.0 or a USB 2.0 hub in between the device and your Pandora. Drivers are obviously another issue.
[edit] you may have seen the "Read This First" thread here: http://www.gp32x.de/board/index.php?/topic/44746-the-pandora-information-index/
which would have pointed you to the FAQ here: http://pandorawiki.org/FAQ
and then you would have found mention of USB devices here: http://pandorawiki.org/FAQ#Will_I_be_able_to_use_USB_and_SDIO_accessories_with_my_Pandora.3F
and the USB page here: http://pandorawiki.org/USB_reference
with links to the compatibility list here: http://pandorawiki.org/USB_compatibility_list

Last edited by a moderator:

tsh

Active Member
Joined
Dec 19, 2008
Messages
773
Location
Cambridge
Website
Visit site
The best reference point in the wiki is the Documentation/Tutorial index
http://pandorawiki.org/Tutorials_and_documentation

There is also the Unofficial User Guide which is slowly gaining links to more detailed reference.
http://pandorawiki.org/User_manual

The FAQ page in the wiki is more useful for questions of market positioning, history, etc.


urjaman

"I Know. We're going for a ride."
Joined
Jan 6, 2009
Messages
1,111
Age
30
Location
Finland
Website
urjaman.dy.fi
If you want videos, I give you mindlord's pandora usb test :p :
[youtube]http://www.youtube.com/watch?v=_3M6f_NUnHs[/youtube]


dnlgreenwood

I'LL END YOU!!!
Joined
Jul 17, 2010
Messages
705
Age
25
Location
BC, Canada
aesir911 said:
any attempts with a ps3 or xbox 360 controller?

a ps3 controller should be easy, as it uses a standard mini-usb connector.

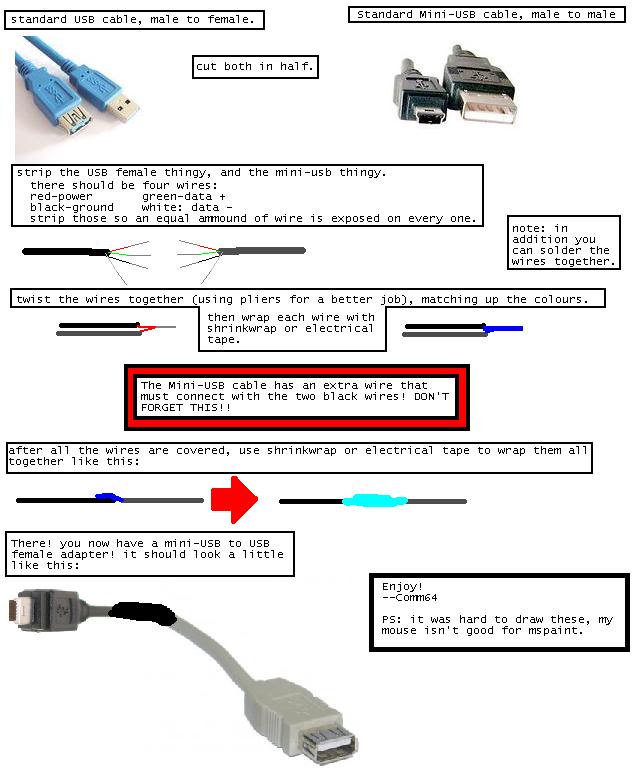

I made my own mini-usb to usb adapter but i dont have it with me, here, i'll draw my diagram.

EDIT: picture removed, see the one below.

Last edited by a moderator:

WizardStan

Mega GP Mania
Joined
May 24, 2008
Messages
16,733
There's a fifth pin on the USB mini that needs to be taken to ground, as noted in one of the threads in the Help forum. When you splice the USB mini cable, you should see 5 wires. Which ever one is not red, black, green, or white should be spliced together with the black wires. This extra pin forced to ground tells the USB OTG port to switch from client to host mode.

Joined
May 17, 2010
Messages
2,198
Location
:|
I'm still looking for a tiny/discreet usb hub like the one Gruso posted a while back.


mali

-
Joined
Sep 30, 2008
Messages
6,543
Age
44
Location
EU
Website
Visit site
WizardStan said:
There's a fifth pin on the USB mini that needs to be taken to ground, as noted in one of the threads in the Help forum. When you splice the USB mini cable, you should see 5 wires. Which ever one is not red, black, green, or white should be spliced together with the black wires. This extra pin forced to ground tells the USB OTG port to switch from client to host mode.
The problem with those cables is that the host pin sometimes isn't fed through. I had to do a pretty ugly hack dismantling the complete plug to ground that pin for my N800 adaptor.

Last edited by a moderator:

Prometheus

Well-Known Member
Joined
Mar 8, 2008
Messages
9,475
For the record, it works perfectly with the Pandora. :p Excellent little hub. I used it to hook up a USB keyboard and mouse.

Everything else I have is USB 2.0, so I didn't try it with those items (those were a USB 2.0 flash-drive, an Apple USB Ethernet adapter, a WD Elements 160GB HDD, and a LaCie Rikiki 250GB HDD which did not work and did scary things to the screen - I added most of them to the USB compatibility list).


dnlgreenwood

I'LL END YOU!!!
Joined
Jul 17, 2010
Messages
705
Age
25
Location
BC, Canada
WizardStan said:
There's a fifth pin on the USB mini that needs to be taken to ground, as noted in one of the threads in the Help forum. When you splice the USB mini cable, you should see 5 wires. Which ever one is not red, black, green, or white should be spliced together with the black wires. This extra pin forced to ground tells the USB OTG port to switch from client to host mode.

ah! forgot about that! will fix.

I had a blackberry and the 5th pin broke off of it on its mini usb port and it wouldnt charge...


Last edited by a moderator:

WizardStan

Mega GP Mania
Joined
May 24, 2008
Messages
16,733
milkshake said:
cant you just buy one of these? instead of butchering 2 cables?
You can, but I've not seen a cheap one.
You can (or at least I can) get a standard and an extension cable to splice together from the dollar store.

Last edited by a moderator:

dnlgreenwood

I'LL END YOU!!!
Joined
Jul 17, 2010
Messages
705
Age
25
Location
BC, Canada
Last edited by a moderator:

Abanest

Member
Joined
Jul 1, 2010
Messages
115
Well, seeing as we're on the subject of USB devices I won't start a whole new thread for this...

I'm planning ahead with my Pandora to have a leather case built for it (my misses is like a miracle worker with that stuff), and the idea is to have room for my 320G external HD to be connected via usb to the Pandora inside this case. My question is, and it's probably a very silly question due to the fact I am not used to little devices like this letting me do whatever I want with it, does the Pandora allow me to click and drag files from that HD to the SD cards like a normal computer would? I want to be able to copy and move files freely with the Pandora without needing to plug everything into my Desktop to click and chose.


WizardStan

Mega GP Mania
Joined
May 24, 2008
Messages
16,733
Abanest said:
does the Pandora allow me to click and drag files from that HD to the SD cards like a normal computer would?
It surely would.
Now an important question for you: is that external HD USB powered or does it have an external power source? If it is powered by the USB itself, then it is very important to ensure that it does not exceed 500mA load. The USB spec says that devices shall not exceed this 500mA, but not all devices respect this. A desktop PC, being plugged into the wall, usually has no problem maintaining a higher load. The Pandora is very limited in what it can provide, so sticks pretty close to the standard. If your hard drive tries to draw more than 500mA off the USB, bad things will happen.

Last edited by a moderator:

Abanest

Member
Joined
Jul 1, 2010
Messages
115
Yeah, it's powered through the USB. It's one of those 2.5 external WD HD's, almost the same shape and size as the Pandora itself actually. I can't seem to find any mention of it's max power load on the label, though. I'll do a google.

Many thanks for your input, Wizard.

[EDIT]
Okay, I'm not finding any info regarding it's power output. Is there a way I can test or gauge how much power it consumes using my laptop?
