Test the keymat!

Discussion in 'General Discussions' started by EvilDragon, Apr 22, 2017.

  1. SneHebNor

    SneHebNor Still Fresh

    Joined:
    May 15, 2016
    Messages:
    56
    Ah, sure! :~)

    Yes, they did not work well. Might be much better when the Pyra is complete.

  2. levi

    levi Still fresh, damnit!

    Joined:
    Oct 6, 2008
    Messages:
    7,748
    Location:
    Somewhere off the coast of the EU
    It's my understanding that the shoulder button plastics don't line up with the shoulder button switches on the PCB - one of them is an older revision than the other. All you can really say regarding them in this round of keymat tests is whether you think they'd be easy to find, because pressing them should be entirely different.

  3. Neelix

    Neelix Insecticidal Maniac

    Joined:
    Jan 8, 2011
    Messages:
    3,175
    Location:
    Melbourne, Australia
    If I understood what ED was saying earlier, it's not that they don't line up so much as that the buttons just can't be depressed far enough to make contact with the switches.

    -Neelix

  4. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    18,953
    Location:
    Ingolstadt
    Actually, I've never seen a 1mm thick PCB break inside a mobile device :O
    Never happened on the Pandora and I've never seen that anywhere else.
    There's not really much force applied on the PCB anywhere...

    Any particular reason for that concern?

  5. Kev2442

    Kev2442 Still French

    Joined:
    Nov 4, 2014
    Messages:
    434
    Location:
    42 (Loire) is the answer.
    I'll add to that that most force applied to the PCB (pulling an USB device) would come from the side. Not actually bending it, right ?
    I just noticed, the shoulders aren't labeled ! Shouldn't we fix that for production ? Shouldn't we care ? Is this even possible anyway ?

  6. Silent-Hunter

    Silent-Hunter Advanced Member

    Joined:
    May 29, 2010
    Messages:
    2,408
    This can be fixed by referring to them as LI, LO, RI, and RO. Left Inner, Left Outer, Right Inner, and Right Outer. That way they don't need to be labeled.

  7. Grench

    Grench Forum Addict!

    Joined:
    Oct 3, 2008
    Messages:
    5,094
    It is the Double Wide trailer key on the lower right.
    --- Double Post Merged, May 12, 2017, Original Post Date: May 12, 2017 ---
    Quick. Someone make some label stickers using the meme font so they work on any color case so those so inclined can stick them to the bach of the screen lid upside down so they can see them by flipping the Pyra closed. Which one should print over the other? Someone do a mockup quick so we can debate these forgotten keboard symbols!

    Seriously, I may take a calligraphy sharpie and write on the keyboard side of the hinge the letters SCAP or PACS or CAPS. Whatever the ordering ended up being when it was hashed out.

    Kev2442 likes this.
  8. Kev2442

    Kev2442 Still French

    Joined:
    Nov 4, 2014
    Messages:
    434
    Location:
    42 (Loire) is the answer.
    @Silent-Hunter : Good idea, makes for a change instead of "L2"-styled naming. I was thinking more of its OS use as Shift, Ctrl and so on.

    @Grench : You're right. We wouldn't even be able to read these. I thought about controllers, but you can easily twist them to have a look. And for instance, a PlayStation controller can be hold without any fingers on either L1/R1 or L2/R2.
    The Pyra bumpers are meant to be optional, right ? So if one thinks of it like a controller/handheld game console, that person would instinctively wrap their fingers around, just like an NDS. Otherwise, they don't need the labelling for buttons they won't use anyway.

    All in all, we most probably don't need them to be labeled on the case, but we may have to think of a naming convention for the manual or the first-time welcome in order to explain the default association to the user (like "RO is R-Ctrl and RI is AltGr").

  9. Neelix

    Neelix Insecticidal Maniac

    Joined:
    Jan 8, 2011
    Messages:
    3,175
    Location:
    Melbourne, Australia
    Or you know you could just call them L1, L2, R1, and R2 and label them as such, along with their keyboard modifier definitions in the instruction pamphlet, Put a similar diagram on the default wallpaper for good measure.
    The buttons have very distinctive styling, so you could probably just use the lower left and right corners of the background image to show images of the buttons on that side of the unit with their definitions.

    -Neelix

    spud42 and tarator like this.
  10. SneHebNor

    SneHebNor Still Fresh

    Joined:
    May 15, 2016
    Messages:
    56
    The products of our company are used (sometimes) by construction workers. Maybe this audience is different than the average Pandora/Pyra geek :~)
    --- Double Post Merged, May 12, 2017, Original Post Date: May 12, 2017 ---
    Another photo: https://framasphere.org/posts/3248839
    --- Double Post Merged, May 12, 2017 ---
    Two more photos: https://framasphere.org/posts/3249988
    --- Double Post Merged, May 12, 2017 ---
    All Pyra related stuff in Diaspora* is here: https://framasphere.org/tags/pyra (you can replace "framasphere.org" with any pod of your choice, of course)

    tarator likes this.
  11. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    18,953
    Location:
    Ingolstadt
    But you'd need to completely kill the case before you could break the PCB...

  12. gpb

    gpb Still Fresh

    Joined:
    Jun 15, 2016
    Messages:
    12
    Location:
    Bielefeld, Germany

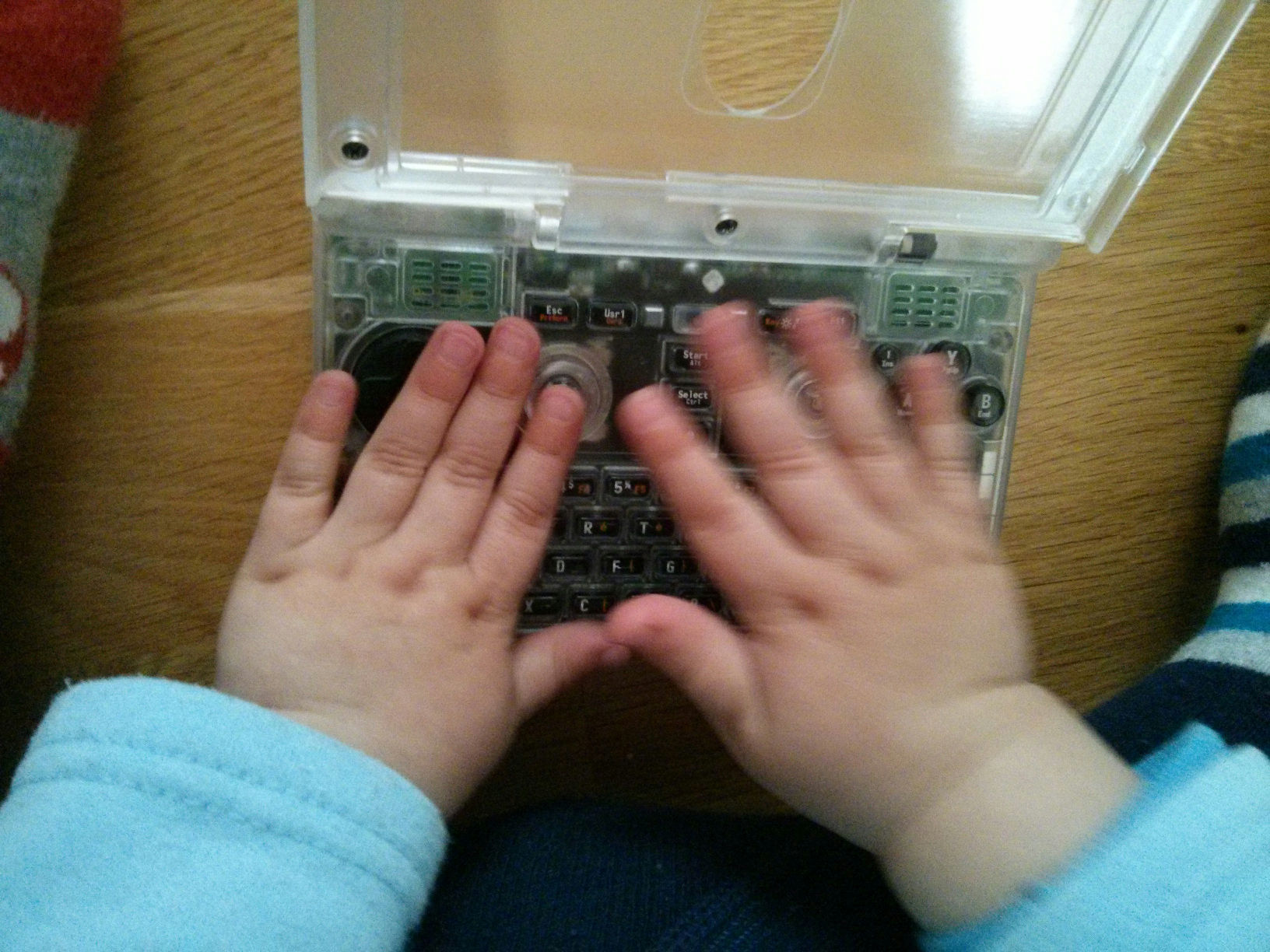

    10-finger-writing on Pyra confirmed!
    --- Double Post Merged, May 12, 2017, Original Post Date: May 12, 2017 ---
    Yesterday, the hiking Pyra arrived Bielefeld and today I got her from the postal office.

    I don't own a Pandora and never have seen one in real life, so this was my first contact with this form factor and what should I say?
    Yes, she looks a little thick, when you leave her closed on the table. But as soon as you grabbed her with your hands, you will appreciate her curves!
    Really, the feeling of the keys when typing on her is great. I am looking forward to get my full functional Pyra to code, ssh and surf the net with her.

    Before she leaves to visit south of Germany, she took the time to play with young:

    and old:

  13. second exodous

    second exodous Well-Known Member

    Joined:
    Sep 27, 2005
    Messages:
    2,702
    Location:
    Utah, USA
    I think for comfort the Pandora is probably the second most comfortable handheld I've owned. For me the GBA SP probably took the top spot but that is only because you can lay on your side and comfortably play it because it is so narrow your arms rest on each other. The only time I want to do that though is when I'm sick, too sick to sit up but need something to keep my mind off how sick I am.

  14. SneHebNor

    SneHebNor Still Fresh

    Joined:
    May 15, 2016
    Messages:
    56
    ible, levi and ClockworkCoder like this.
  15. rygD

    rygD Nihilistic Mystic

    Joined:
    Feb 28, 2014
    Messages:
    6,287
    Location:
    Everywhere
    It wasn't until after I switched to using other handhelds (brick GB, and also the original DS) that I noticed the SP was a bit too small/thin to be totally comfortable for me, but it was great for carrying around, and not as tiny as the last member of the GB family.

    The original DS felt optimal for usability when it came to the thickness of the base. The Pandora sometimes felt a bit on the thin side, but it is still ok. Neither of those is exactly comfortable in the pocket, though. I will probably like the Pyra in my hands. Not sure how well it will work out in my pocket.

  16. Grench

    Grench Forum Addict!

    Joined:
    Oct 3, 2008
    Messages:
    5,094
    Has the keymat sample arrived at it's next destination yet?

    rygD and levi like this.
  17. levi

    levi Still fresh, damnit!

    Joined:
    Oct 6, 2008
    Messages:
    7,748
    Location:
    Somewhere off the coast of the EU
    Indeed, @gpb did you post it on yet?

    @el joker have you received it yet?

    I note this is the first time that assembled prototype is due to leave Germany, but I'd have thought post within the schengen zone wouldn't be all that slow.

    el joker likes this.
  18. gpb

    gpb Still Fresh

    Joined:
    Jun 15, 2016
    Messages:
    12
    Location:
    Bielefeld, Germany
    According to the Trackingid the Pyra should have arrived on Tuesday.

    rygD, ClockworkCoder and levi like this.
  19. Sumpfmonster

    Sumpfmonster Still Fresh

    Joined:
    Nov 2, 2016
    Messages:
    6
    Location:
    Esslingen, Germany
    Yes... the keymat arrived, but it wasn't delivered to @el joker. I got inserted into the list after @EvilDragon posted it.

    The keymat looks fine to me, the only problem I've spotted is that for example the W-key keeps sticking if you hold it down for a few seconds.
    Also one shoulder button switch doesn't work anymore, because the shoulder button got pushed into the case. That probaply happened during the transport of the device.

    I of course also took some pictures of it...

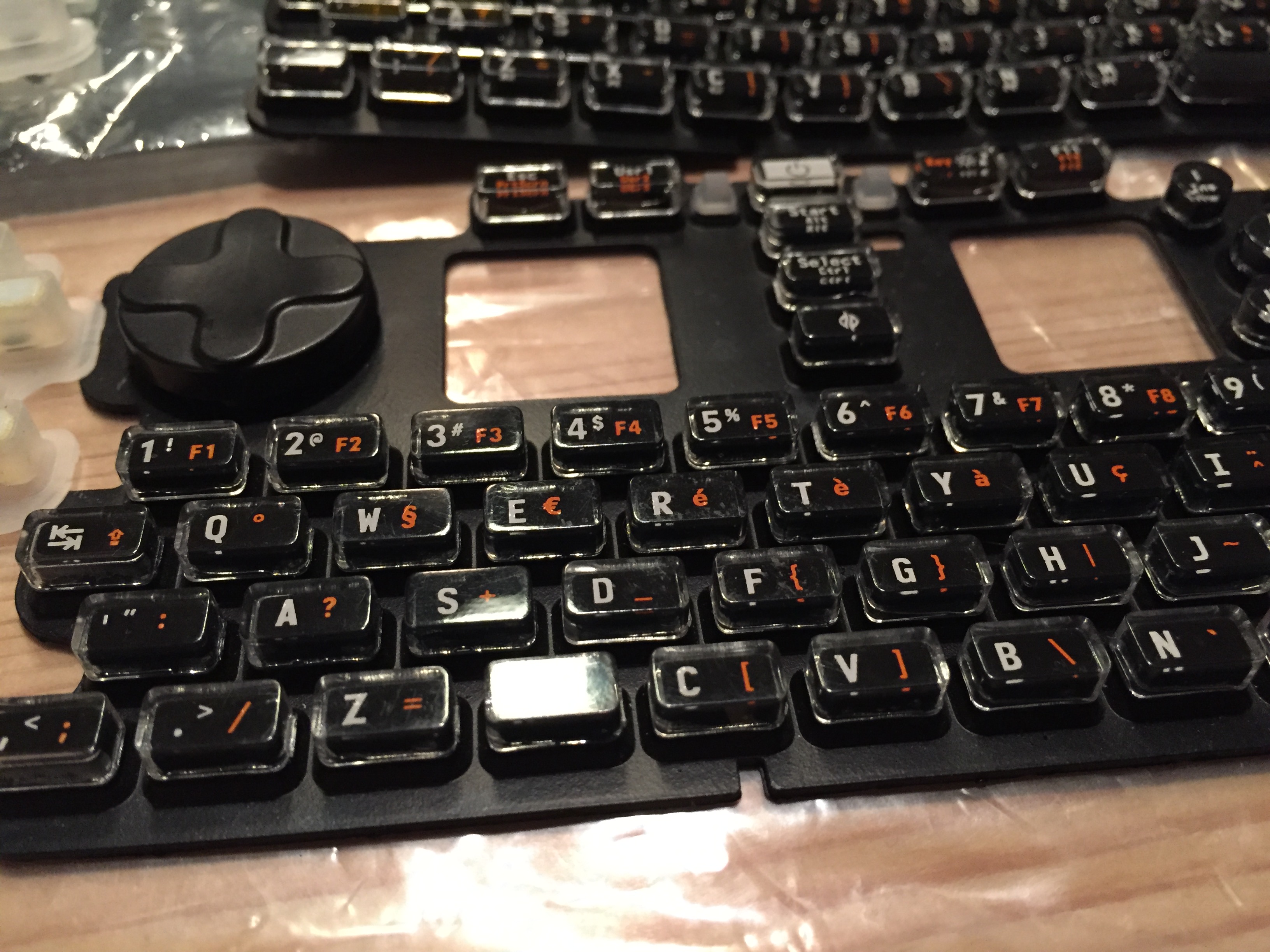

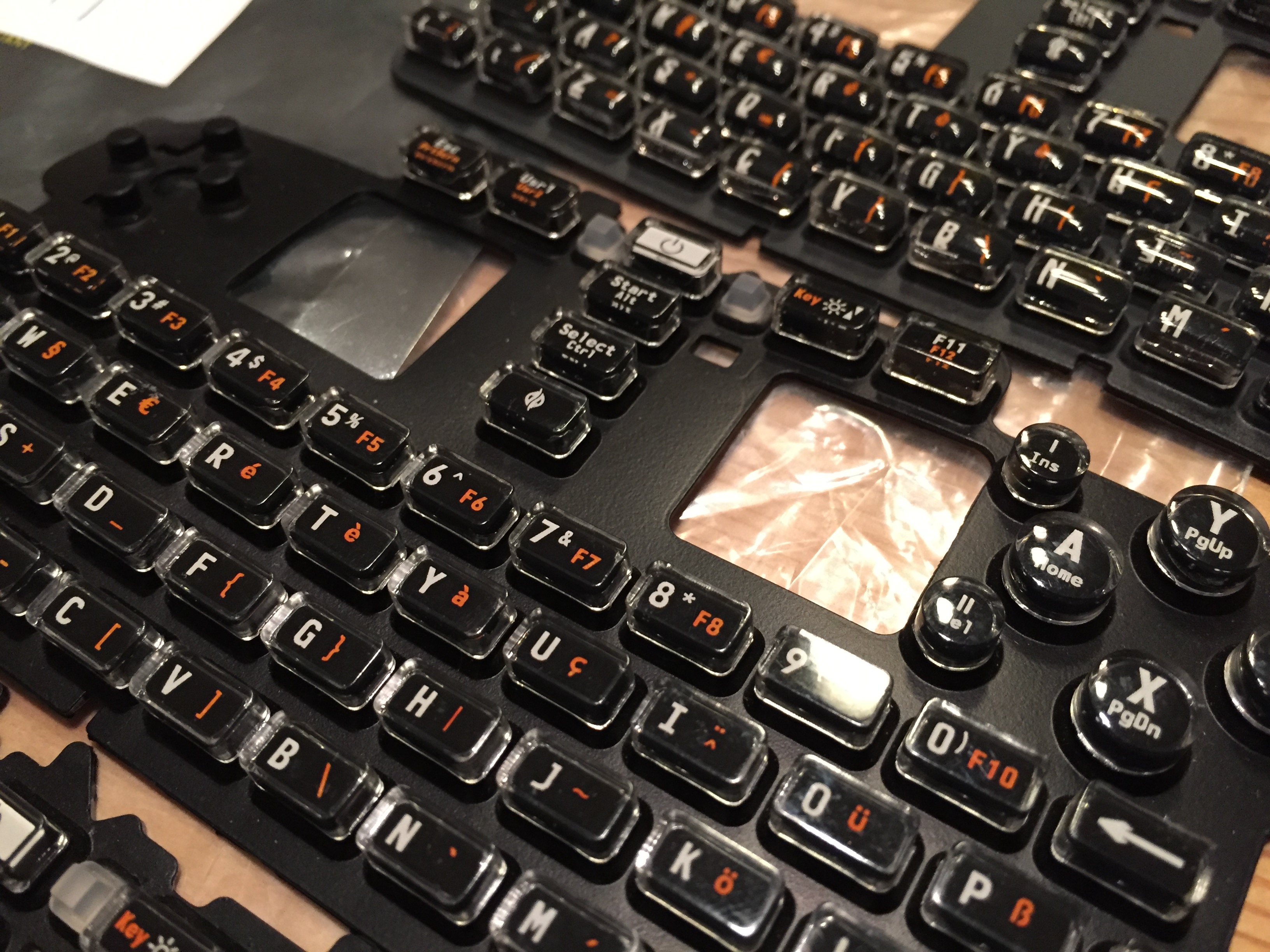

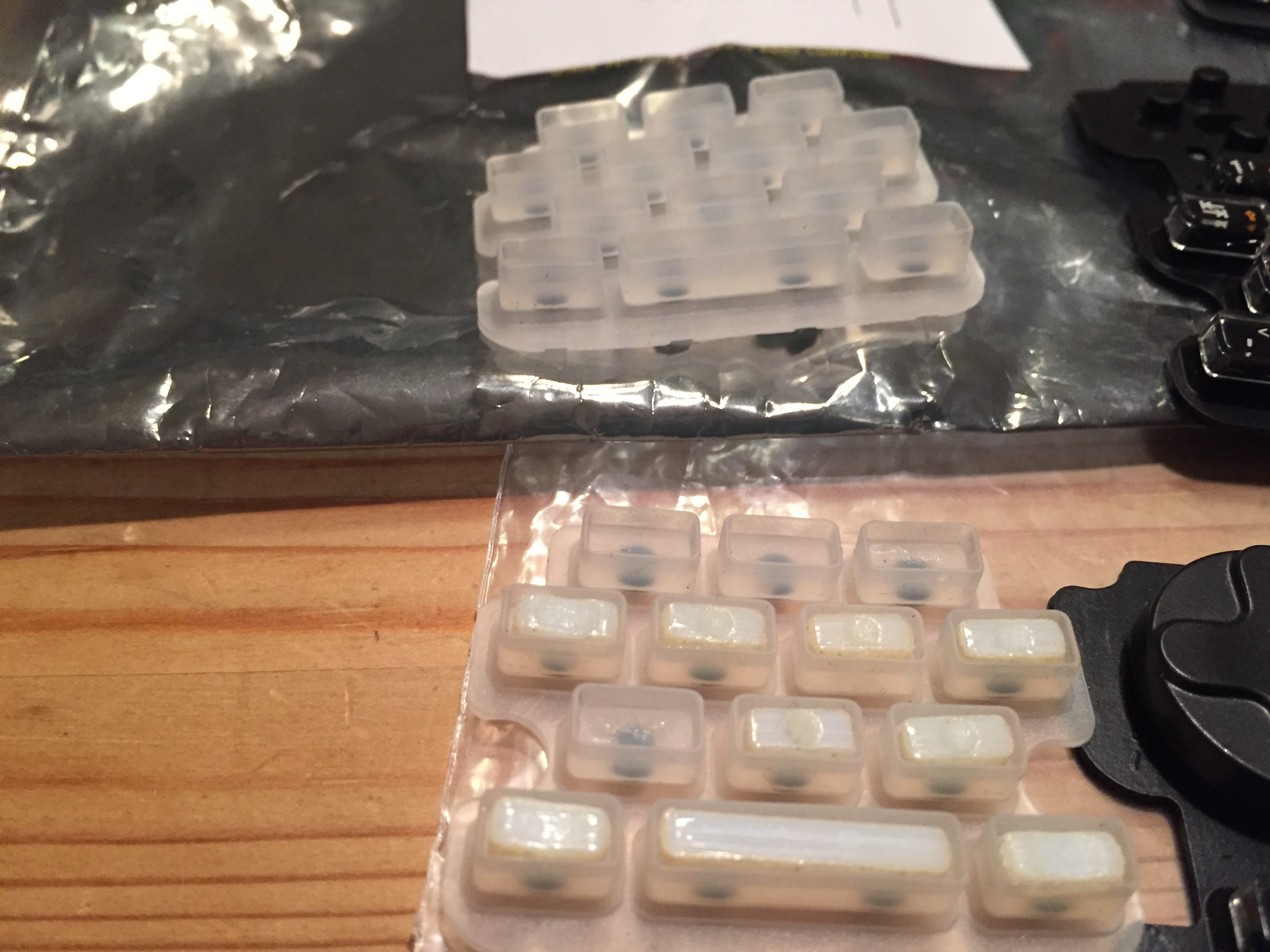

    Old revisions:

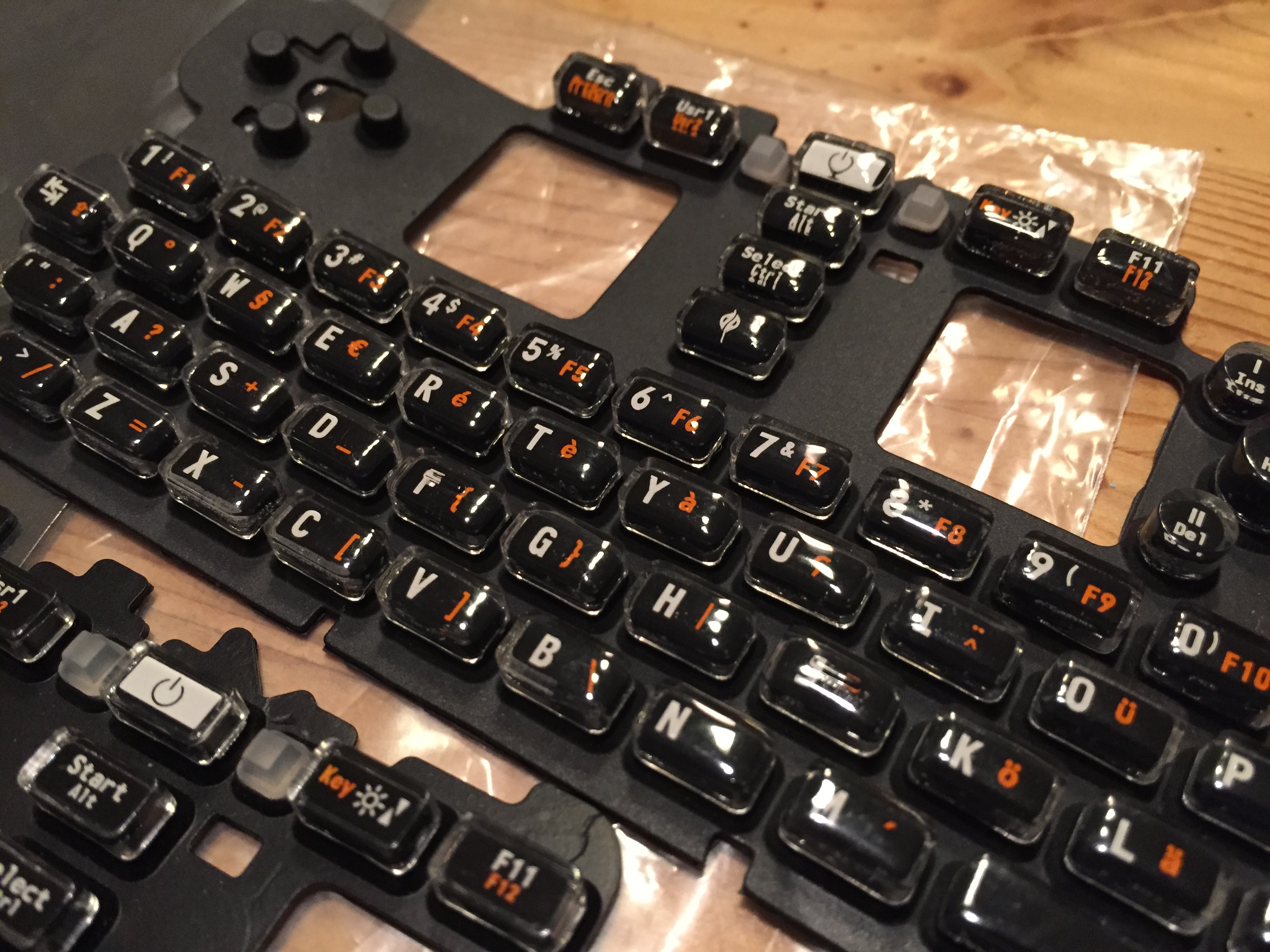

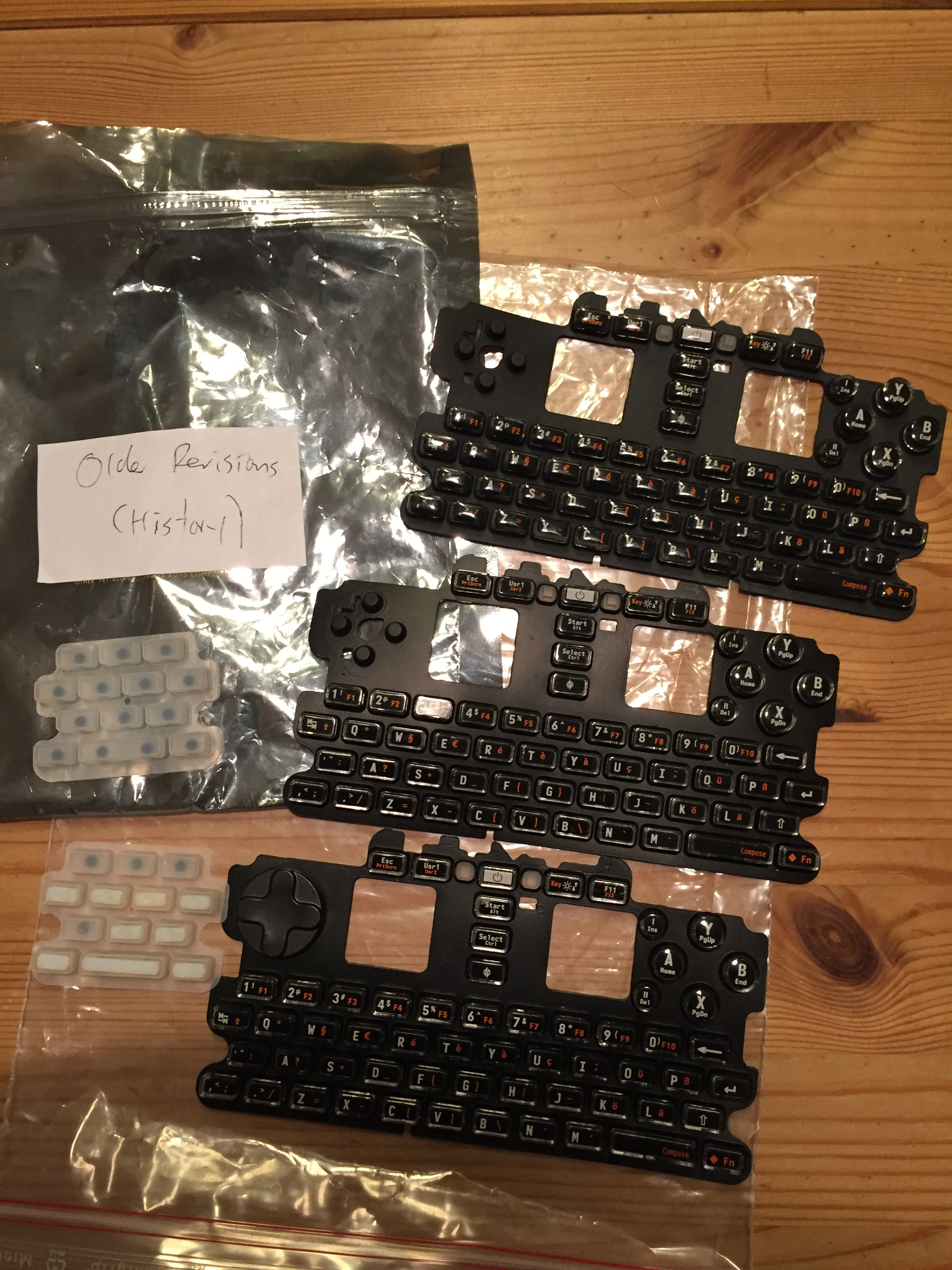

    IMG_5101_size_reduced.JPG IMG_5102.JPG IMG_5103.JPG IMG_5104.JPG IMG_5105.JPG

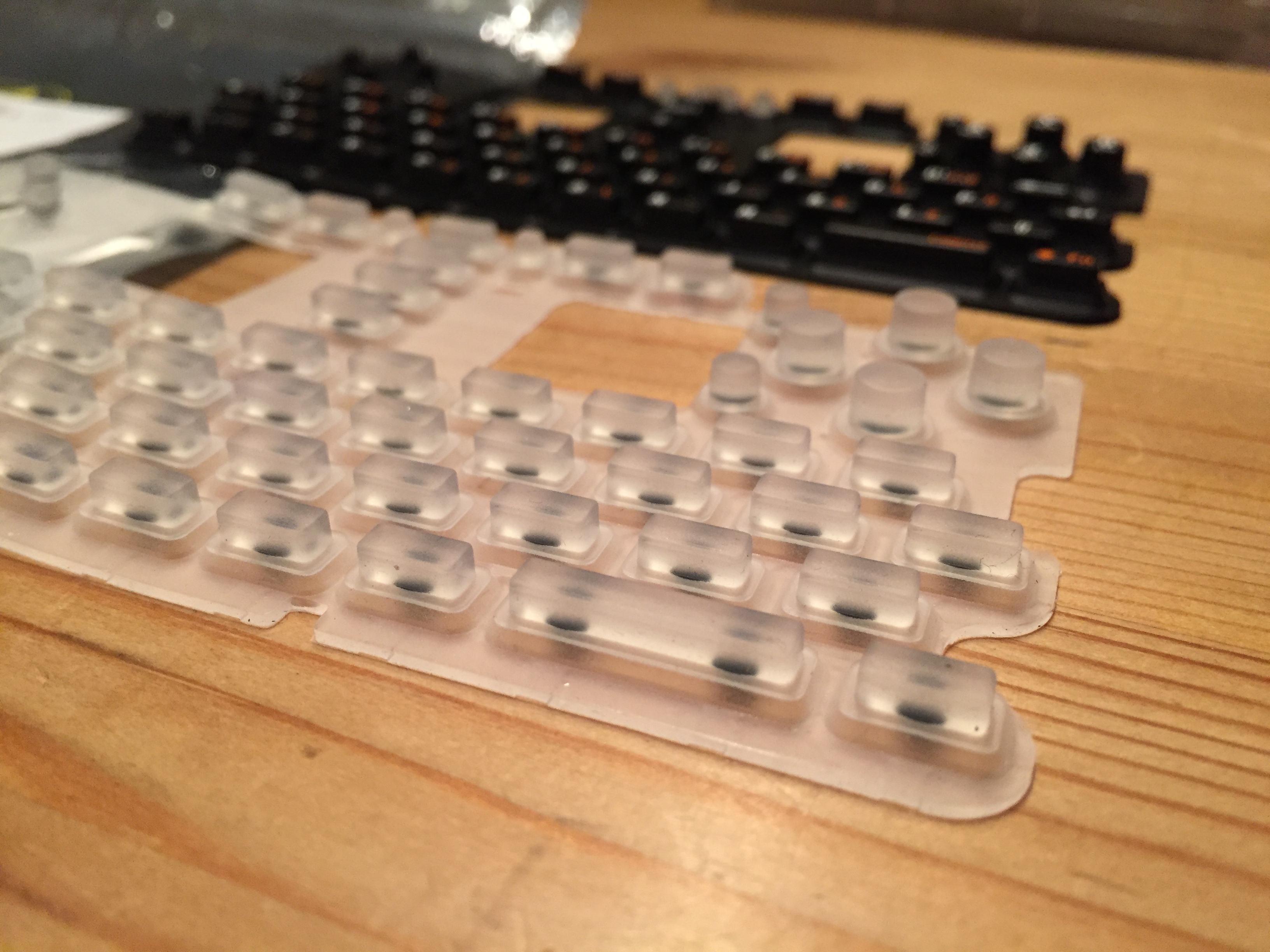

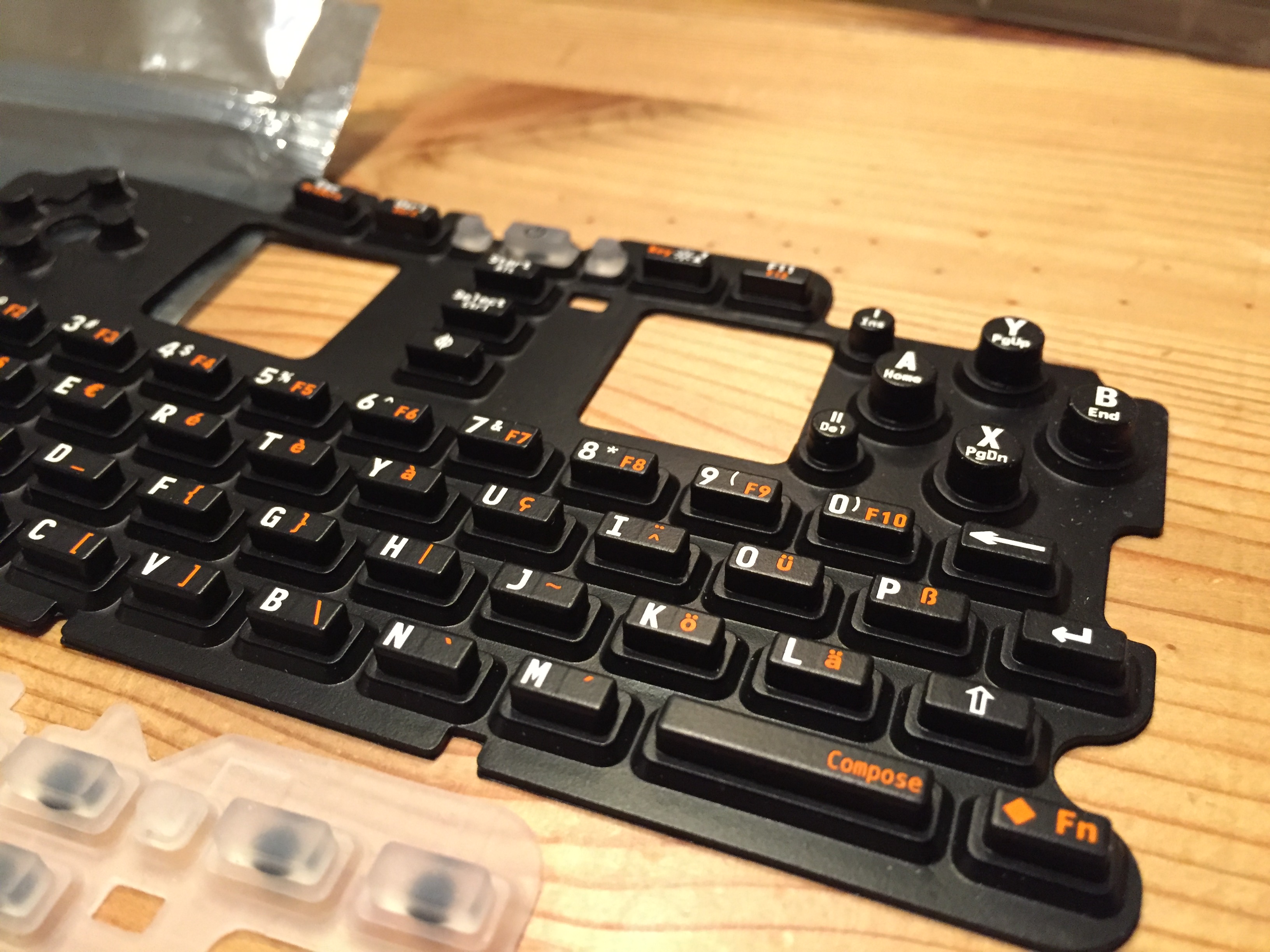

    Version without color/caps:

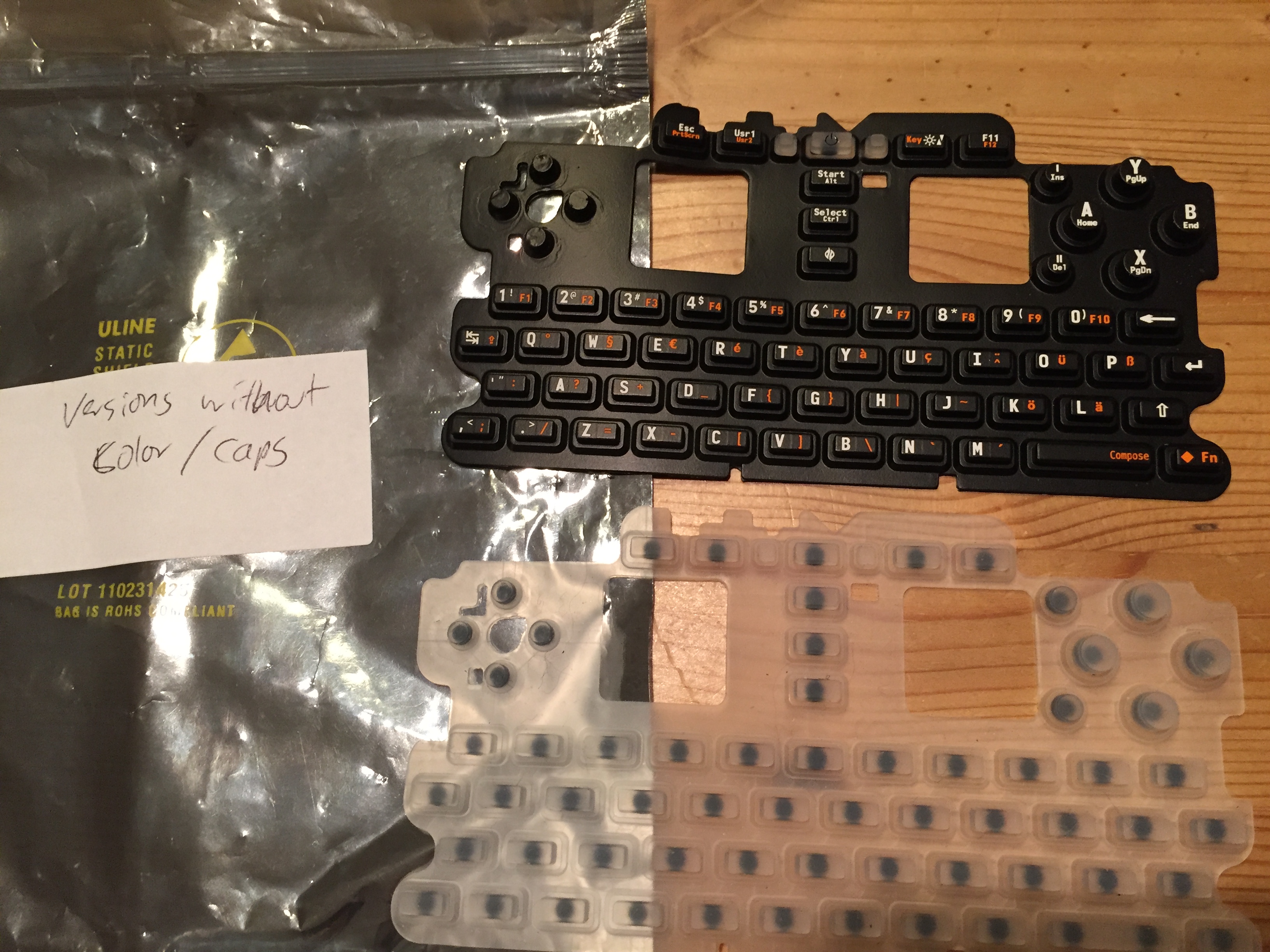

    IMG_5106.JPG IMG_5107.JPG IMG_5109.JPG

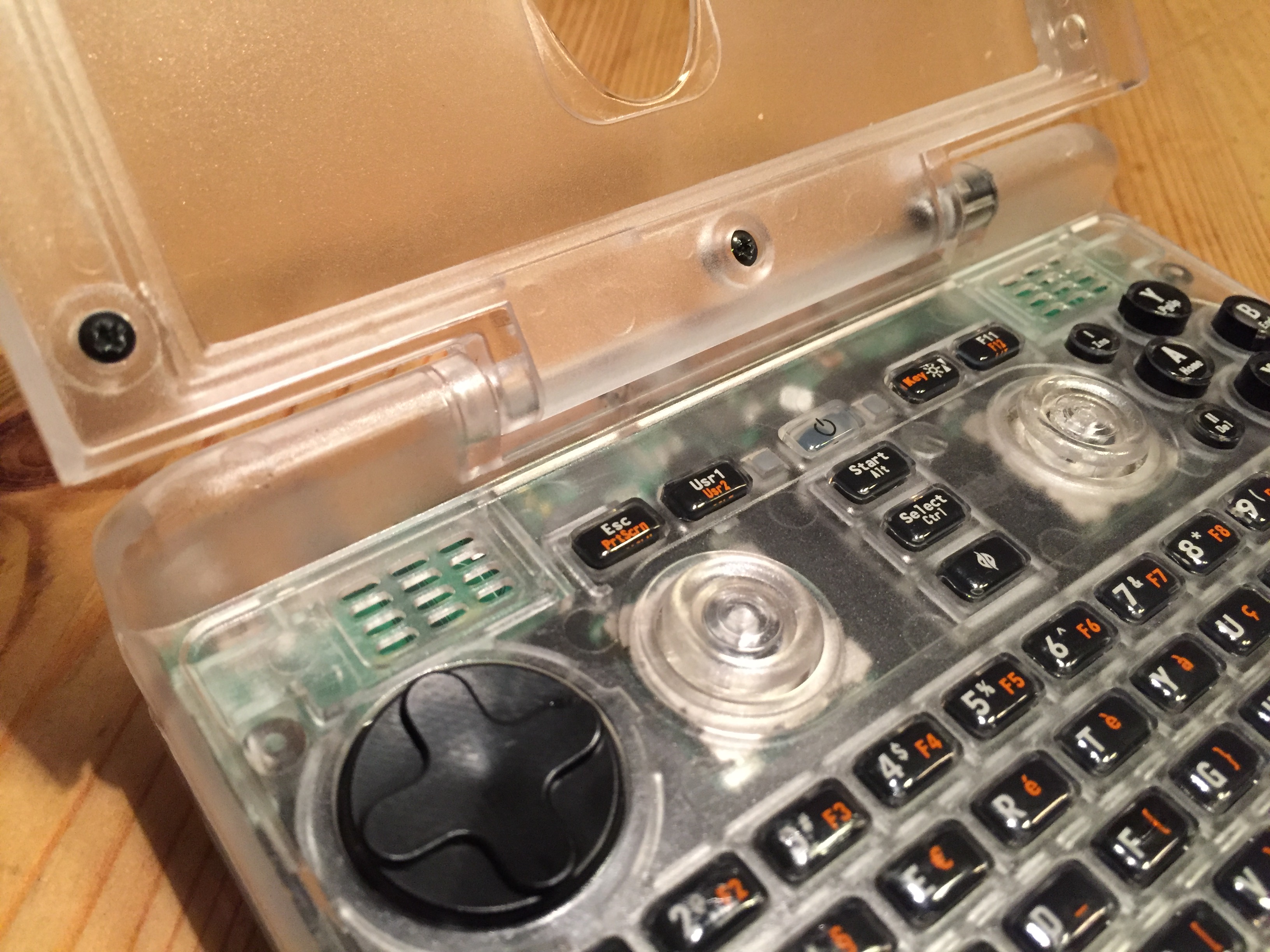

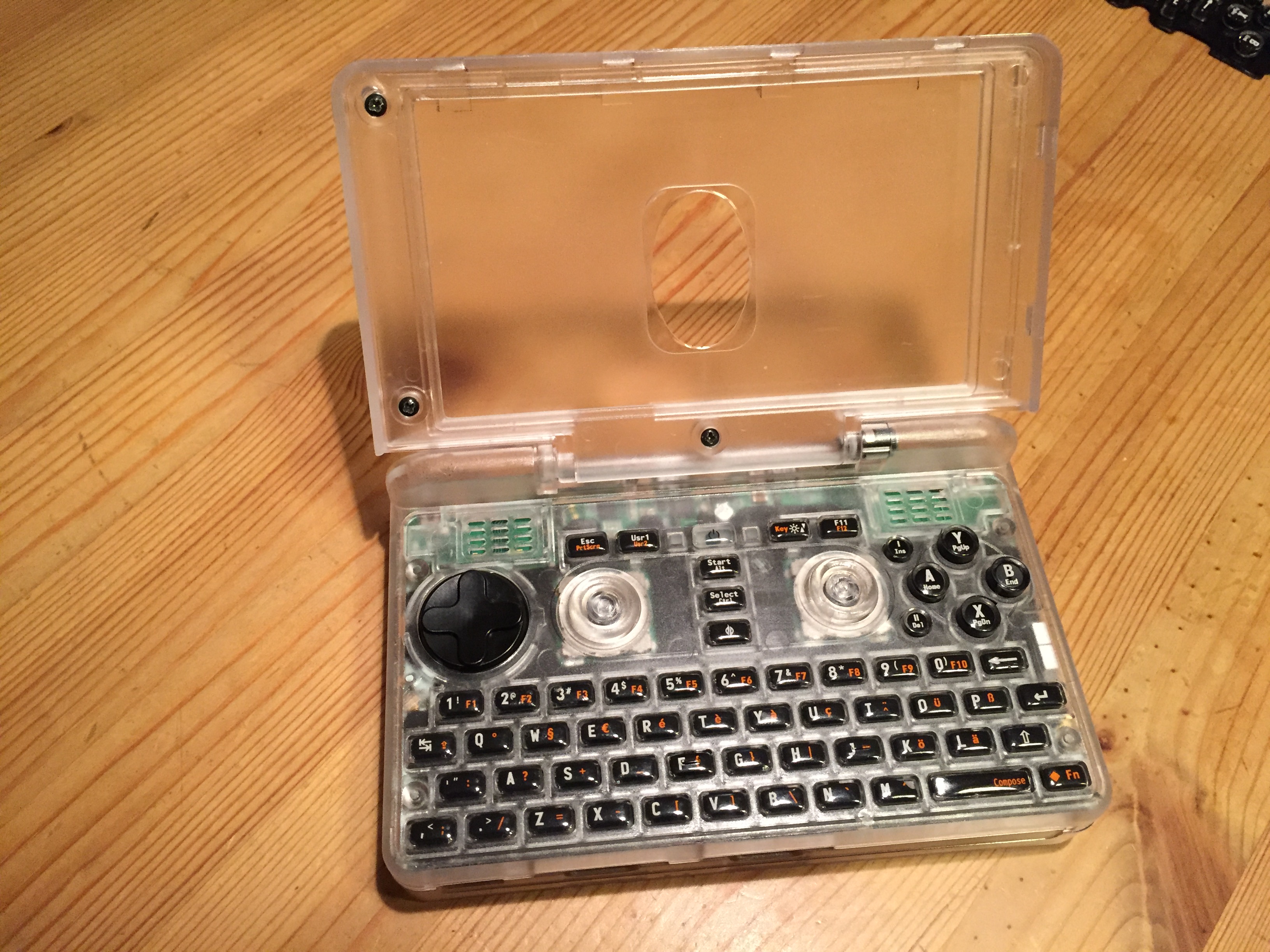

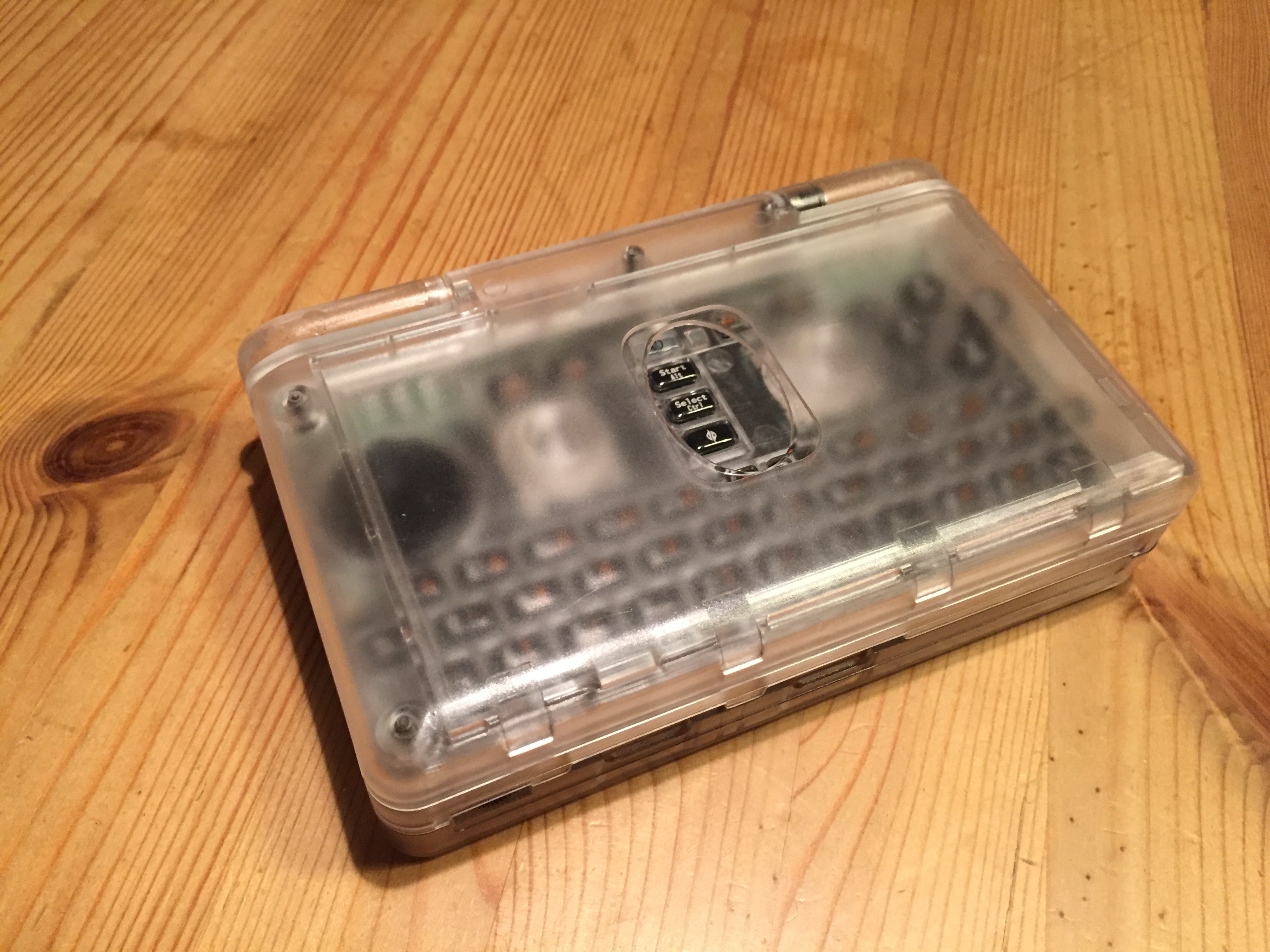

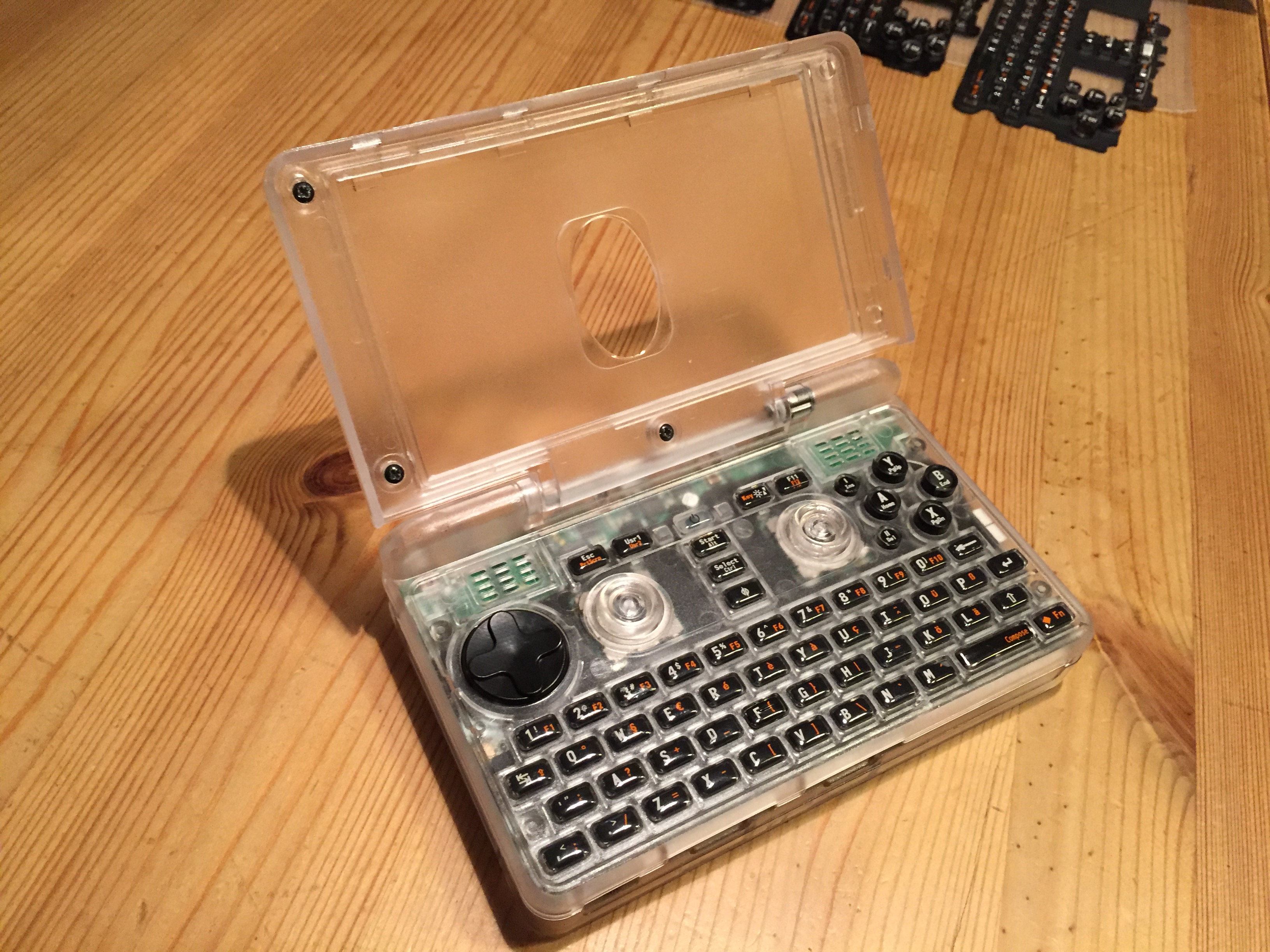

    Case with current keymat:

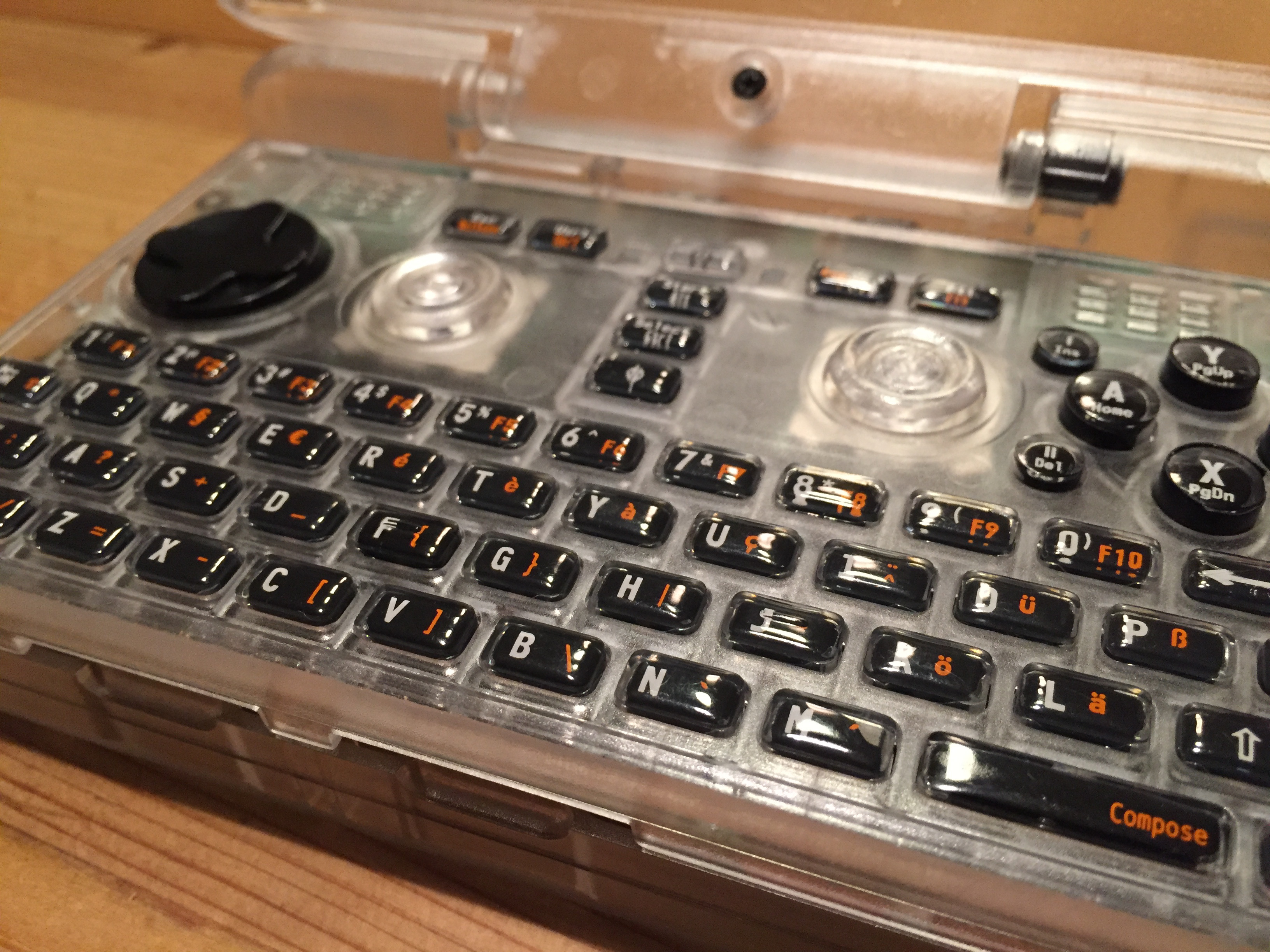

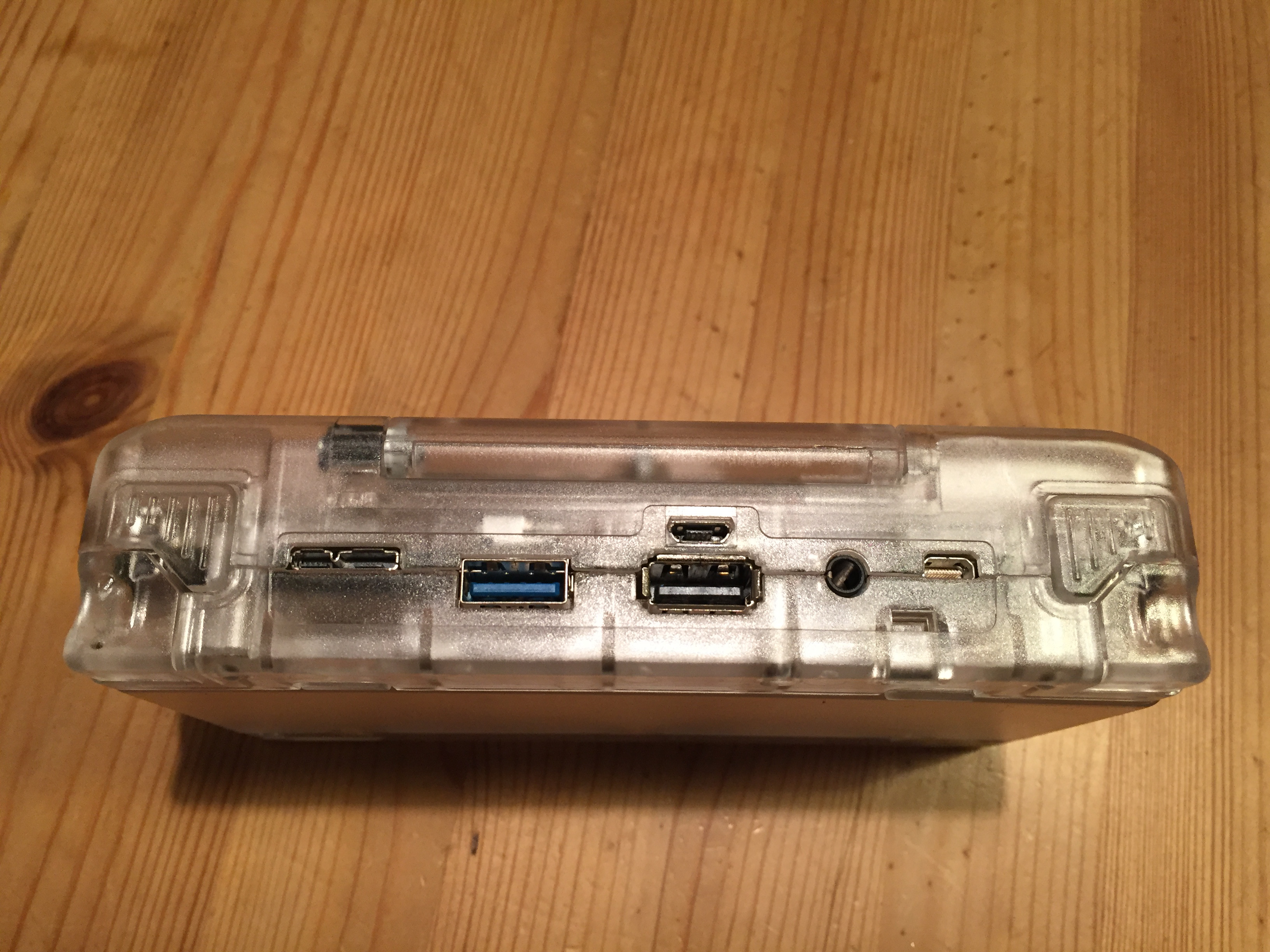

    IMG_5110_size_reduced.JPG IMG_5111.JPG IMG_5112.JPG IMG_5113.JPG IMG_5114_rotated.JPG IMG_5115.JPG

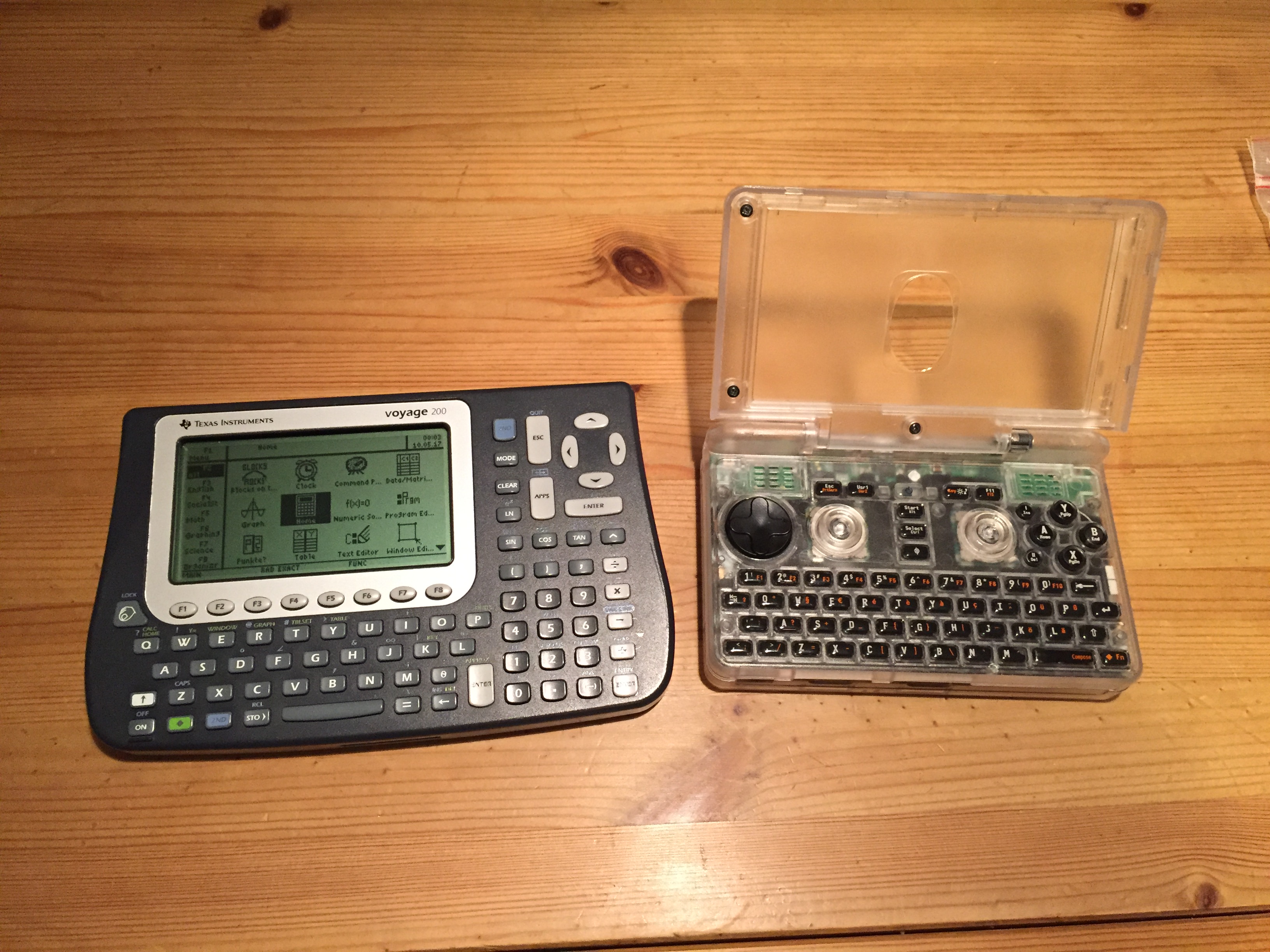

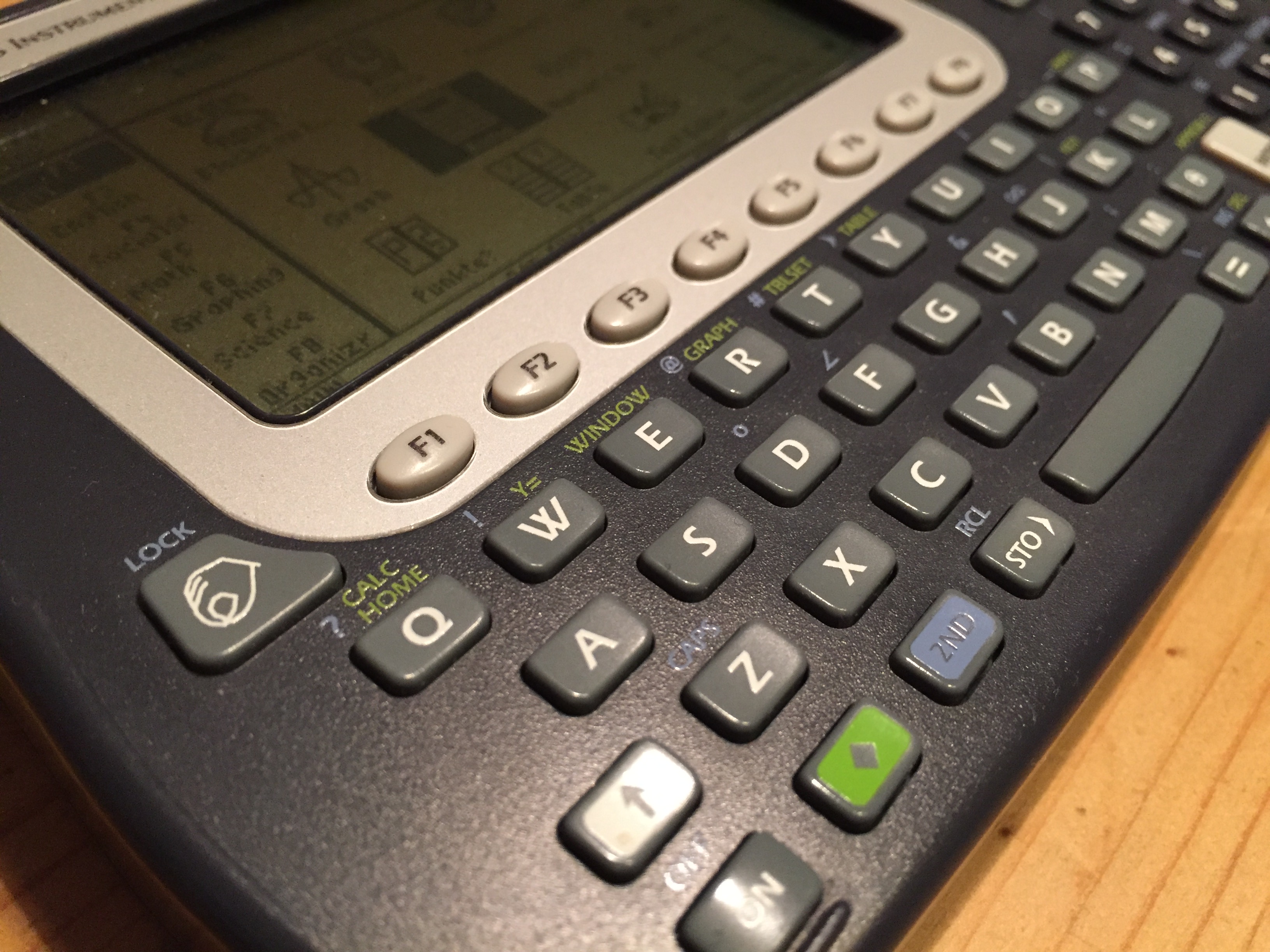

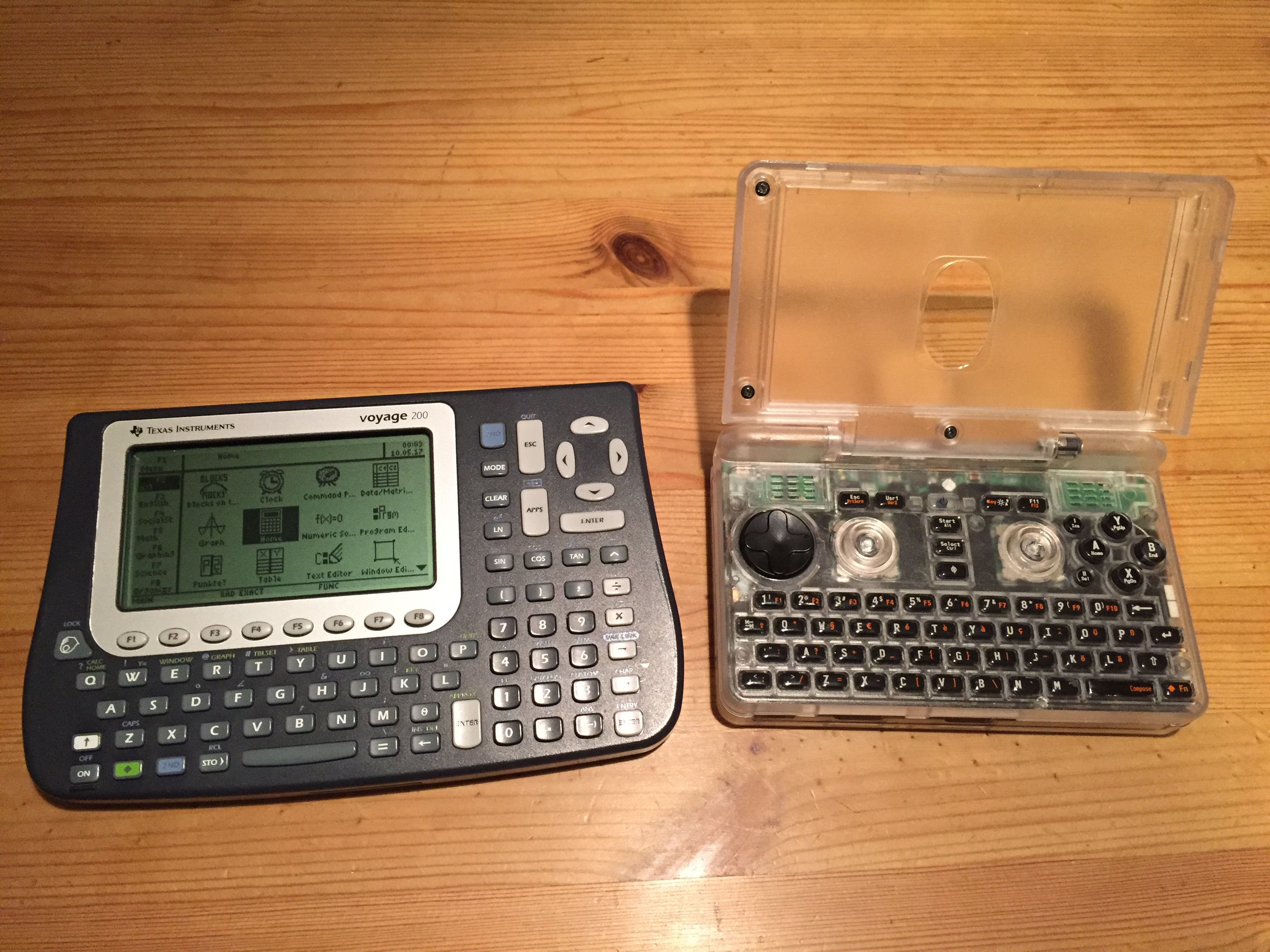

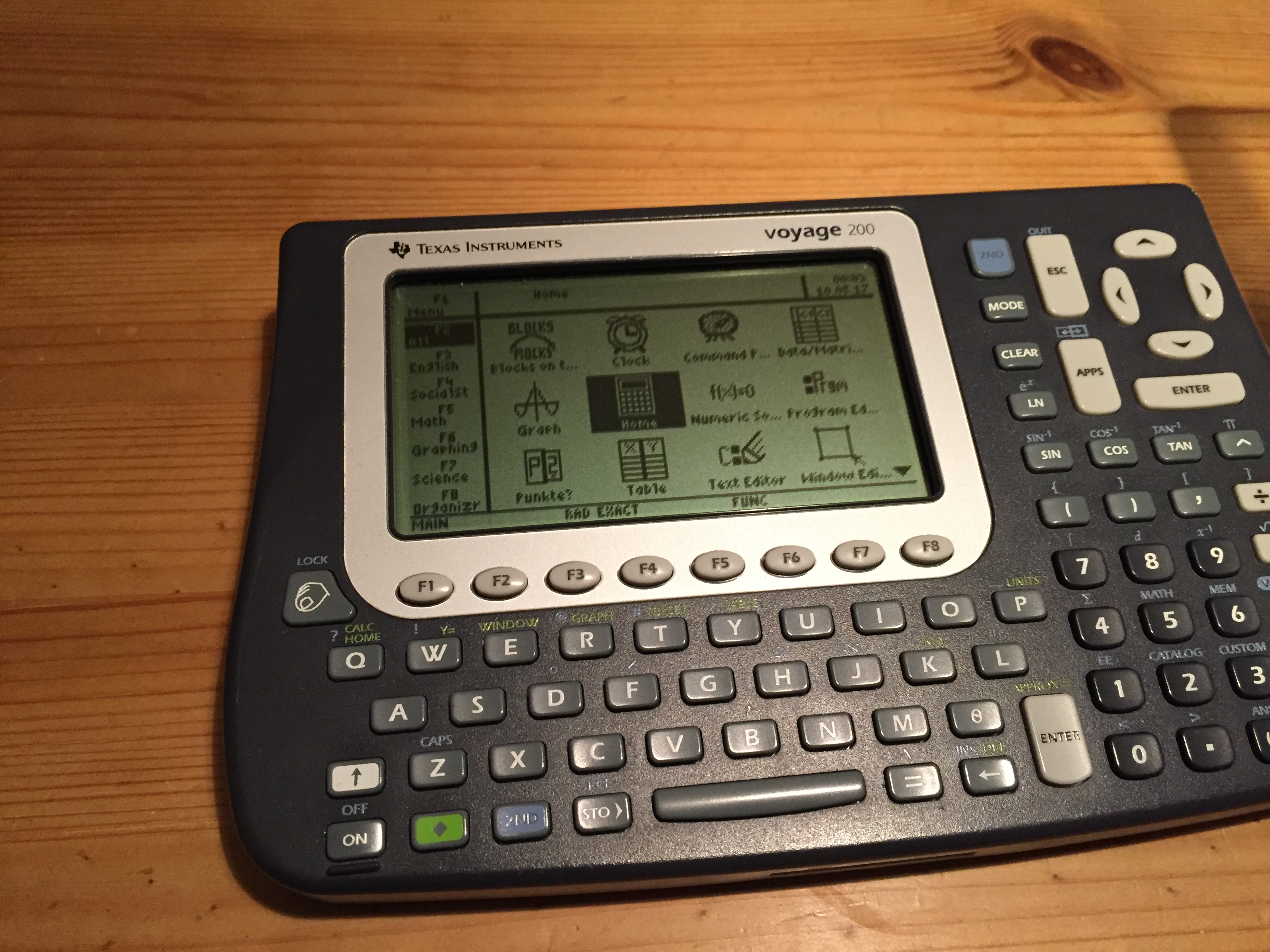

    Comparison to my other favourite handheld (and peripheral brain), a Ti Voyage 200.
    The keys of the V200 need a bit more force to press and also have a shorter travel distance than the Pyra keys...
    IMG_5116.JPG IMG_5117.JPG IMG_5118.JPG IMG_5119.JPG

    Now I don't know where to send it next, but I already sent an email to ED about that...

    Edit: removed image with wrong rotation

    Last edited: May 20, 2017
    TheAnimatedFreak, FBnil, gpb and 5 others like this.
