what is this component?


peelie2019

Still Fresh
Joined
Jun 17, 2019
Messages
5
Hi All
I was in process of opening up Pandora to change old black case to a silver case and i stumbled at first hurdle!
a component dropped out and i have no idea where it dropped from. I have looked at the pcb pictures but cannot see it.

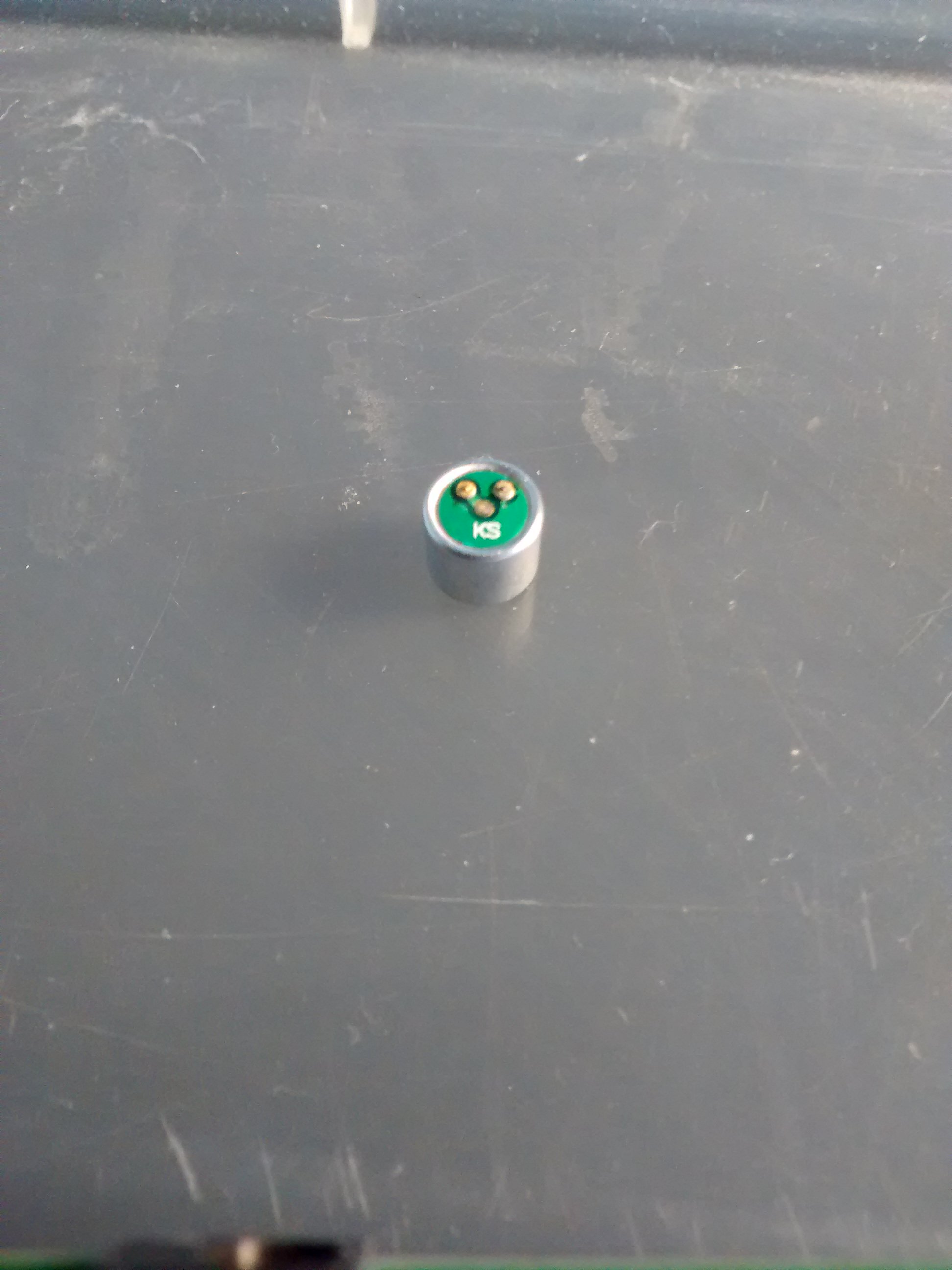

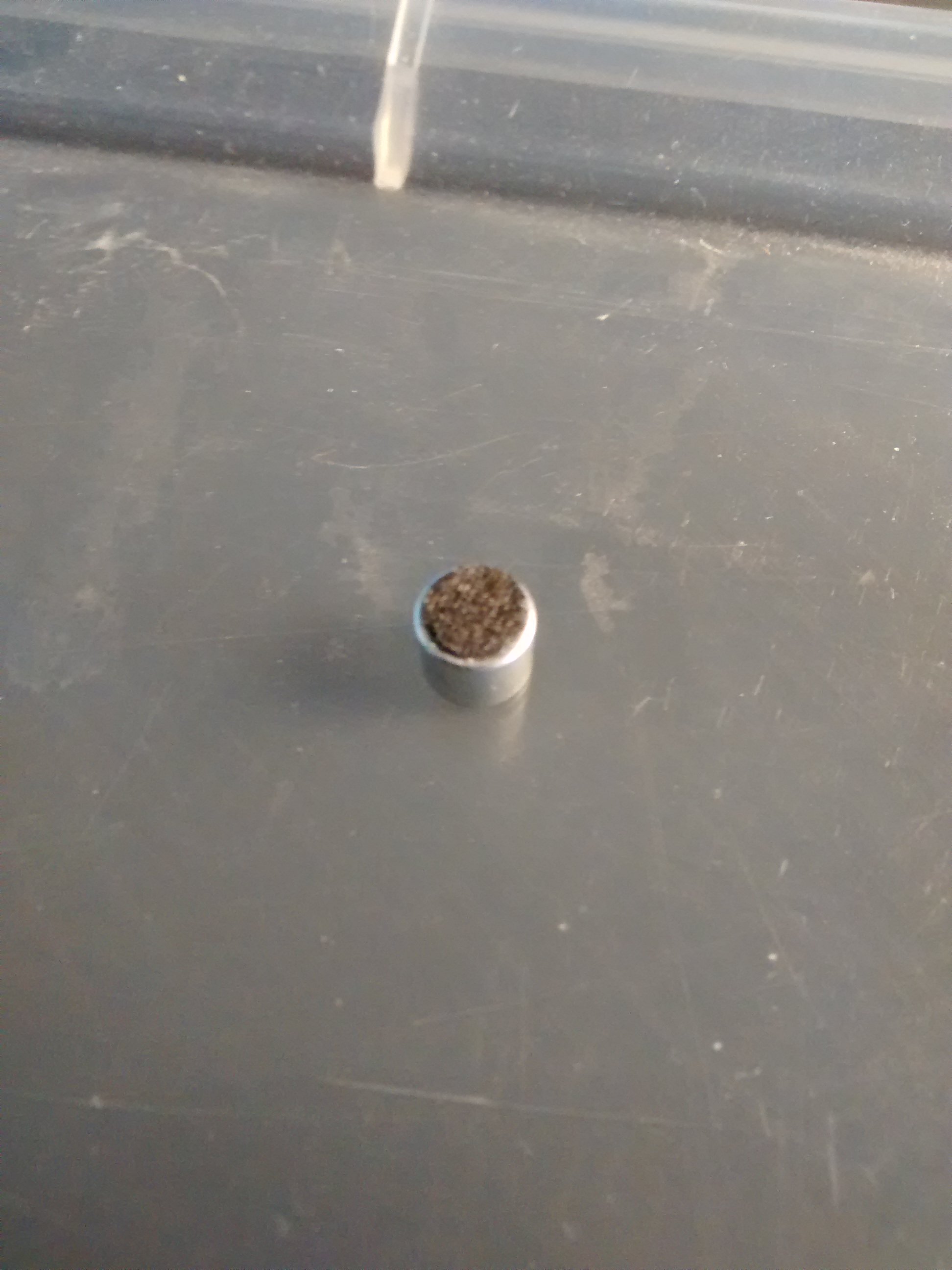

i attach photos of it, any help appreciated!

thx
peelie


Attachments

  • Wow
Reactions: rSl

TeDaDeS

Advanced Member
Joined
Jan 15, 2004
Messages
1,072
Location
The Netherlands
Website
Visit site
It's the microphone 'CMC-5042PF-AC':

I think it's usually mounted on the front side of the PCB above the 0-key (top right), left from LEDs.


matzesu

Forum Addict!
Staff member
Joined
Oct 24, 2008
Messages
10,148
Age
36
Location
Germany,, Saarland, at home
When I crashed my Pandora, this component was one of the 2 things that got damaged, the other was the right shoulder button :(
This night I had a dream that my Pandora fell in pieces:( I got then the Pyra but it was also not that good assembled


Send from something, i guess ^^


peelie2019

Still Fresh
Joined
Jun 17, 2019
Messages
5
It's the microphone 'CMC-5042PF-AC':


I think it's usually mounted on the front side of the PCB above the 0-key (top right), left from LEDs.
thanks for the component model!

if i ever feel like opening pandora again now know what to order to replace the fallen out microphone.

good news is that rest of cover change went well.

all the best
