Glow in the dark keys

Would like to to get a glow in the dark keymat for you Pandora?


  • Total voters
    80

pengo

Member
Joined
Jul 14, 2011
Messages
118
Don't really prefer keyboard with light leakage from underneath the keys. Perhaps, a single piece keypad (similar to the current Pandora keymat) with backlight concentrated only behind the letters would be ideal or just an LED (with adjustable brightness using hotkey configurations) positioned on the hardware that beams light onto the keyboard.  The glow in the dark keymat sounds fine too if the material is durable.


Last edited by a moderator:

Neelix

Insecticidal Maniac
Joined
Jan 8, 2011
Messages
3,263
Location
Melbourne, Australia
URGH!   Nice for some perhaps , but to me it just sounds really nasty.  Me, I want my backlighting to be uniform,  or close to it, and I want my indicators to be discrete from the backlight.
Sorry but how important are these discrete indicators?  For me, I don't see the importance of them.  I always have all these lights (Power LED, SD cards LEDs, Wifi LEDs, Bluetooth LED) off and they don't affect anything.
For me, quite important. They should also be visible when the unit is closed. Just because you personally don't use them doesn't mean they aren't useful.
An example: I frequently use the radio LEDs when I realise that a short period of inactivity (with the unit closed) is going to turn out to be longer than I initially thought. If I've left the wifi on I'll open the unit at this point to turn it off. If not, then I know I don't have to worry about running down the battery.

- Neelix


Klumpen

Run away! Run away!
Joined
Nov 19, 2011
Messages
8,570
Location
Uncanny Valley

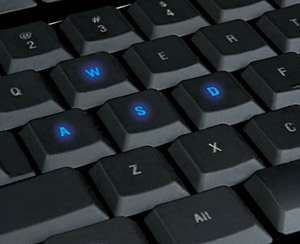

I've found a video and a picture of my backlight:

https://www.youtube.com/embed/J92ZtI4FvK4?feature=oembed



That's all I want and if Pandoras successor costs a bit more because of it, I wouldn't have any problem with it.

These keyboards have just gotten a lot cheaper btw.

I've paid 40€ back then and now you get them for 22€.

There are other layouts available, some with the touch pad and mouse buttons in the middle.

Last edited by a moderator:

MrConfusion

Very Active Member
Joined
Apr 11, 2013
Messages
330
Instead of backlight, some little bumps on F and J keys would go a long way to assist finding keys in the dark. Perhaps similar bumps to a couple of number keys --> problem solved... well, for me, I do realize this solution is far from a proper backlight and I know many people do not type enough with this device to start remembering key positioning "like a reflex".

I have gotten a lot more familiar with the keyboard now and aside from the lack of such bumps find it still "odd" (action, lack of some keys, especially tab), but increasingly comfortable.

(

For me (too) an IBM ThinkLight-style thing at the top left or right corner of the display would be right about perfect. Though I know it would be difficult to direct the light in such confined space (are flashlight LEDs directed these days?). Also I practically never use the Pandora "fully open", so naturally the thinklight thingy simply would not work if I did.

Display is not enough to illuminate the keyboard when it is dimmed and even at lowest backlight level it is actually too bright in the dark (white on black) to my taste.

)


Fzero

Advanced Member
Joined
Mar 9, 2010
Messages
4,703
That Rii mini does look pretty nice to me too.


I'd pay a little premium for that


fusion_power

Advanced Member
Joined
Dec 25, 2005
Messages
13,136
Location
germany
Website
Visit site


That's all I want and if Pandoras successor costs a bit more because of it, I wouldn't have any problem with it.

These keyboards have just gotten a lot cheaper btw.

I've paid 40€ back then and now you get them for 22€.

There are other layouts available, some with the touch pad and mouse buttons in the middle.
FANCY!  :wub:

This is how I imagine a P2 keyboard light, especialy with the flat, dense keys. White also looks pretty good as light, nobody really needs RGB lights.

Any idea how this kind of key light exactly works?

Last edited by a moderator:

Seany

Still Fresh
Joined
Jul 21, 2013
Messages
58
Location
Germany
i personaly use pandora to work in busses, so int he noght time i could use a backlit key


xiongxioi

Member
Joined
Feb 13, 2012
Messages
434
^^ I have a keyboard like that for ages, but never had any chance of using it.

It feels very loose, not much better than tapping on a touchscreen.

I fear that cost is not the main concern here, finding a supplier is. It all depends on whether ED can find someone who's willing to make those in a small number.


spud42

Very Active Member
Joined
Aug 22, 2009
Messages
739
Age
59
Location
Brisbane,Australia.


That's all I want and if Pandoras successor costs a bit more because of it, I wouldn't have any problem with it.

These keyboards have just gotten a lot cheaper btw.

I've paid 40€ back then and now you get them for 22€.

There are other layouts available, some with the touch pad and mouse buttons in the middle.
FANCY!  :wub:

This is how I imagine a P2 keyboard light, especialy with the flat, dense keys. White also looks pretty good as light, nobody really needs RGB lights.

Any idea how this kind of key light exactly works?
it will probably have a clear plastic "frame" running around all the keys with a few strategically placed white LED's . they are called light pipes.


PokeParadox

Founder of Pirate Games - Penjin Coder
Staff member
Joined
Dec 8, 2005
Messages
6,561
Age
37
Location
UK
Website
pokeparadox.itch.io
WEBSITE
https://github.com/pokeparadox
YOUTUBE
pokeparadox

vcoleiro1

Hardcore Member
Joined
Jan 23, 2011
Messages
4,674
Wouldn't the 5" screen produce enough light to see the keys anyway?


fusion_power

Advanced Member
Joined
Dec 25, 2005
Messages
13,136
Location
germany
Website
Visit site
Wouldn't the 5" screen produce enough light to see the keys anyway?
I only use the Pandora with 180 degrees opened lid so the screen can't light up the keys. In a dark room I have to adjust the lid to maybe 90 degrees like I do right now to see the keys. And typing this way is very uncomfortable.


jottt

Member
Joined
Oct 28, 2009
Messages
321
Location
Middle of Germany
More light on the screen usually means less visibility around the screen. My laptop has a bright 17" display, yet I cannot see any keys ;) I see them best when I switch of the screen :p

Glow in the dark (aka phosphorescent) is indeed a bad idea. When I need light on the keyboard it usually have not had any time to charge beforehand. Fluorescent (the streetsign-effect) now would be something different if the light of the screen suffices to activate the keyprint.

Optically speaking the approach of the Razr Lycosa is beautiful (the one posted by pengo). Technically though these keys are terrible to see when NO backlight is switched on. It does not matter on a desktop but matters a lot on a battery powered device.

Taking the current design it probably would be easiest to use a transparent white rubber as a mat (for light transport), clear (or at least kind of clear) buttons with black letters. This way the keyboard is still readable without light. It might look crappy but will work ;)

If you embed transparent letters in a solid key you probably cannot read them anymore (as they are dark without light from below!). Also this is more complicated (if possible at all) to produce with the current design as you have to get the light to the middle where you have the "switch" of the key.

>

One comment on the (nice) Rii Mini:

That looks a lot like a mouse-button-tech-keyboard. This is ok for a few types but the hell for real writing. If you ever tried the N900....not convenient. The current Pandorakeyboard is miles ahead, even though I would prefer "softer" keypresses. But there have been pages of ideas way back in 2008 about that topic ;)


Asiyura

Well-Known Member
Joined
Oct 28, 2009
Messages
1,496
Age
38
Location
France
Technically though these keys are terrible to see when NO backlight is switched on.
Apple use rather similar key system (translucent letters on black keys) and they're perfectly readable even without any backlighting (the letters looks grey).

As I said, we're talking about a backlit keyboard, not about the backlighting of a screen.

There are leds that are pretty bright without consuming gigawatts…


Hồng Thất Công

Đả Cẩu Bổng Pháp
Joined
Dec 19, 2012
Messages
4,385
Location
Cái Bang
Like I said, just use the LEDs for power, wifi, bluetooth, and SD cards and stick them strategically under a black keyboard with translucent letters and we're all set.


jottt

Member
Joined
Oct 28, 2009
Messages
321
Location
Middle of Germany
Technically though these keys are terrible to see when NO backlight is switched on.
Apple use rather similar key system (translucent letters on black keys) and they're perfectly readable even without any backlighting (the letters looks grey).

As I said, we're talking about a backlit keyboard, not about the backlighting of a screen.

There are leds that are pretty bright without consuming gigawatts…
Indeed, Apple managed to light the keyboard very nicely while still maintaining readability. I rest my case ;) However the Apple keyboard is a lot bigger (making it easier to be readable) and probably more manhours where spend on developing said keyboard than time spend on developing the whole pandora ;)

Don't underestimate the powerdrain of a keyboard light though ... Even if it "only" takes 10 Minutes of batterylife I am sure there will be pages of heated debate about it and at least 20 people killing their orders :p

It might make sense to take a closer look on (good) TV Remotes with a backlight. They should be quite similar to our keyboard and they already exist ;)


Asiyura

Well-Known Member
Joined
Oct 28, 2009
Messages
1,496
Age
38
Location
France
Technically though these keys are terrible to see when NO backlight is switched on.
Apple use rather similar key system (translucent letters on black keys) and they're perfectly readable even without any backlighting (the letters looks grey).As I said, we're talking about a backlit keyboard, not about the backlighting of a screen.

There are leds that are pretty bright without consuming gigawatts…
 Indeed, Apple managed to light the keyboard very nicely while still maintaining readability. I rest my case ;) However the Apple keyboard is a lot bigger (making it easier to be readable) and probably more manhours where spend on developing said keyboard than time spend on developing the whole pandora ;)

Don't underestimate the powerdrain of a keyboard light though ... Even if it "only" takes 10 Minutes of batterylife I am sure there will be pages of heated debate about it and at least 20 people killing their orders :p

It might make sense to take a closer look on (good) TV Remotes with a backlight. They should be quite similar to our keyboard and they already exist ;)
I stand my point :


Even better one :



I always felt that white letters on black keys makes a keyboard feel like it's good quality while black letters on white keys makes it feel like a cheap chinese knock-off.

(I'm not talking about actual build quality, but the feeling it gives to the potential owner)

EDIT: and most of the Harmony line of remotes from Logitech feature backlit white pictogram on black keys…

Last edited by a moderator:

jottt

Member
Joined
Oct 28, 2009
Messages
321
Location
Middle of Germany
Nice. I like that Harmony-Design. Are they squishy or clicky? :p

Could we have that in retro-phosphorus-green please?

Last edited by a moderator:

fusion_power

Advanced Member
Joined
Dec 25, 2005
Messages
13,136
Location
germany
Website
Visit site
I always felt that white letters on black keys makes a keyboard feel like it's good quality while black letters on white keys makes it feel like a cheap chinese knock-off.

(I'm not talking about actual build quality, but the feeling it gives to the potential owner)
I know what you mean. The 2. Remote looks way better than the cheap looking first one. Glowing letters instead of black letters onto a glowing key are the way to go.
